• Vendor: KittenBot

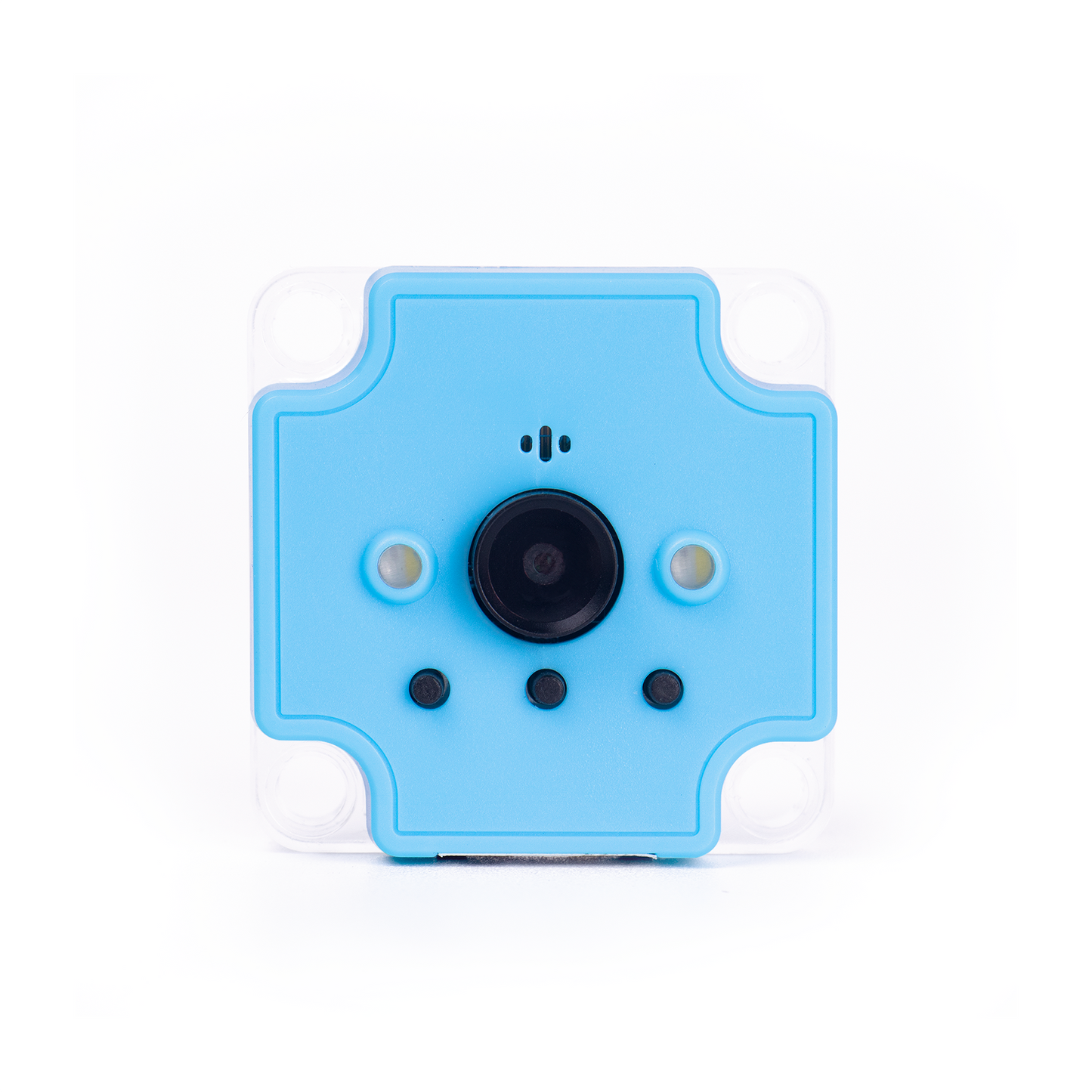

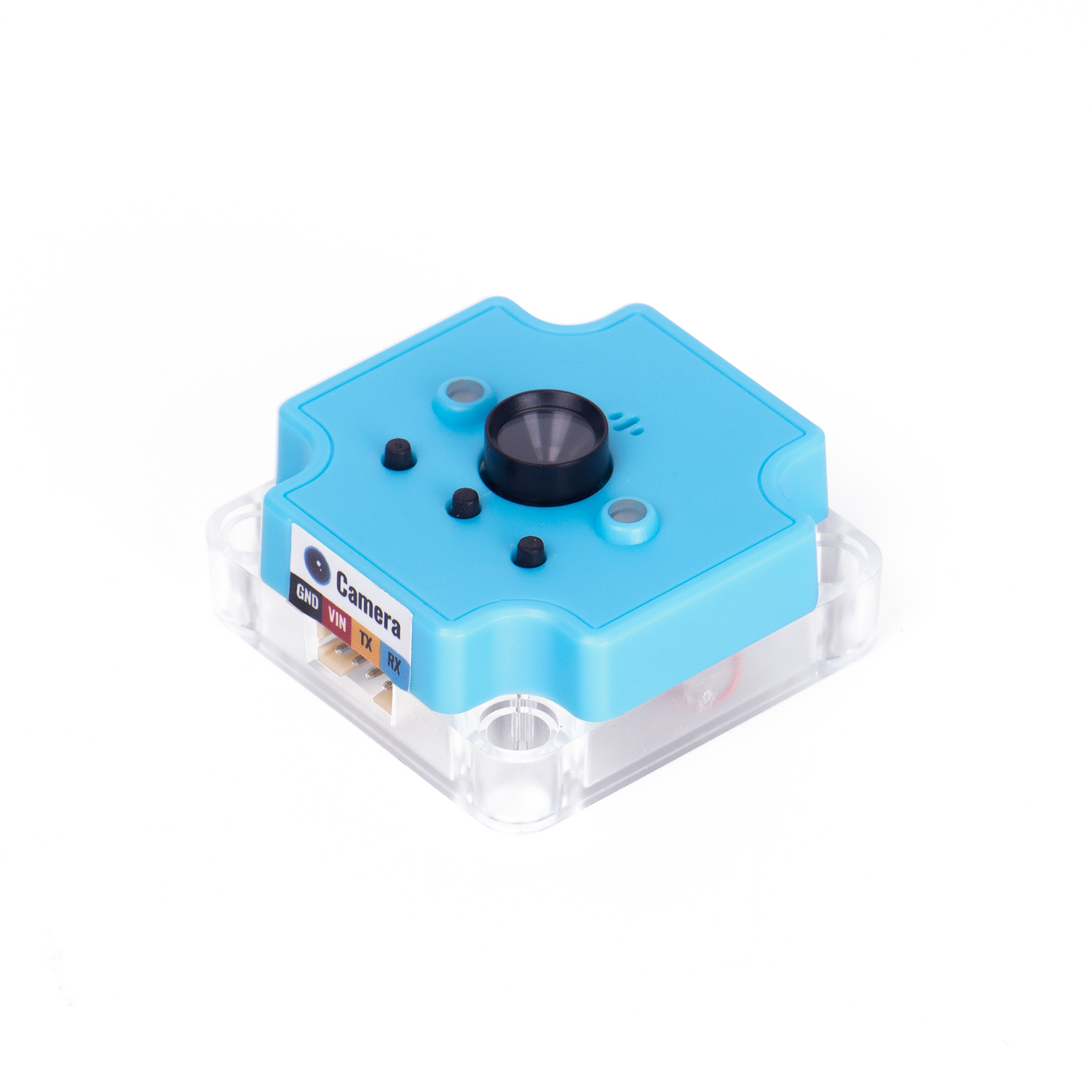

KittenBot Sugar Series - FPV Wireless Camera Module

$59.99 USD
 per
Shipping calculated at checkout.

Shipping policy

In stock!

Product description

The Sugar Camera module, based on the ESP32-S3, features various functions such as video transmission, microphone recording, and speaker playback. It can be widely used in teaching scenarios such as video detection, WLAN video transmission robots, video doorbells, weather observation stations, and QR code scanning.

You can use the Sugar Camera module in combination with our free AI graphical programming software "Kittenblock", to experience AI projects learning. You can even try creating image recognition projects more easily by combining it with Google's Teachable Machine. The Sugar Camera module offers a wide range of applications in STEAM education, maker project creation, and AI learning.



Features

  • The Sugar FPV Camera module can be easily used to create a wireless video robot with micro:bit, Arduino, and other controllers. It transmits data through UART, so you don't need to spend time learning Raspberry Pi or Linux systems.

  • With the Sugar FPV Camera module, you can capture video and audio, and even transmit them wirelessly to a receiver or a connected device in WLAN. This makes it ideal for applications like home security systems, video monitoring, and even interactive projects that require both video and audio capabilities.

  • We provide Kittenblock, a graphical programming software that includes AI extension capabilities. You can utilize it to develop a variety of fascinating AI projects using the Sugar FPV Camera module.

  • By combining it with LEGO bricks, you can create even more exciting and creative works.



Parameter

MCU ESP32 - S3
Operating Voltage 5V
Operating Current 500mA
Size 40 x 40 x19 mm
Weight 17.7 g
Camera ov2640
Speaker 0.5W
LED RGB+W 2x
Button  Codable Button 2x + Reset Button
Communication Protocol UART
Port Type Type-C & PH2.0 4Pin





What can it do

With the combination of Sugar FPV Camera module's wireless vedio transmission, audio transmission, and web-based remote control functionality, we can explore various applications. Let's give it a try
