Regular price
$9.90
Sale price
$9.90

Description

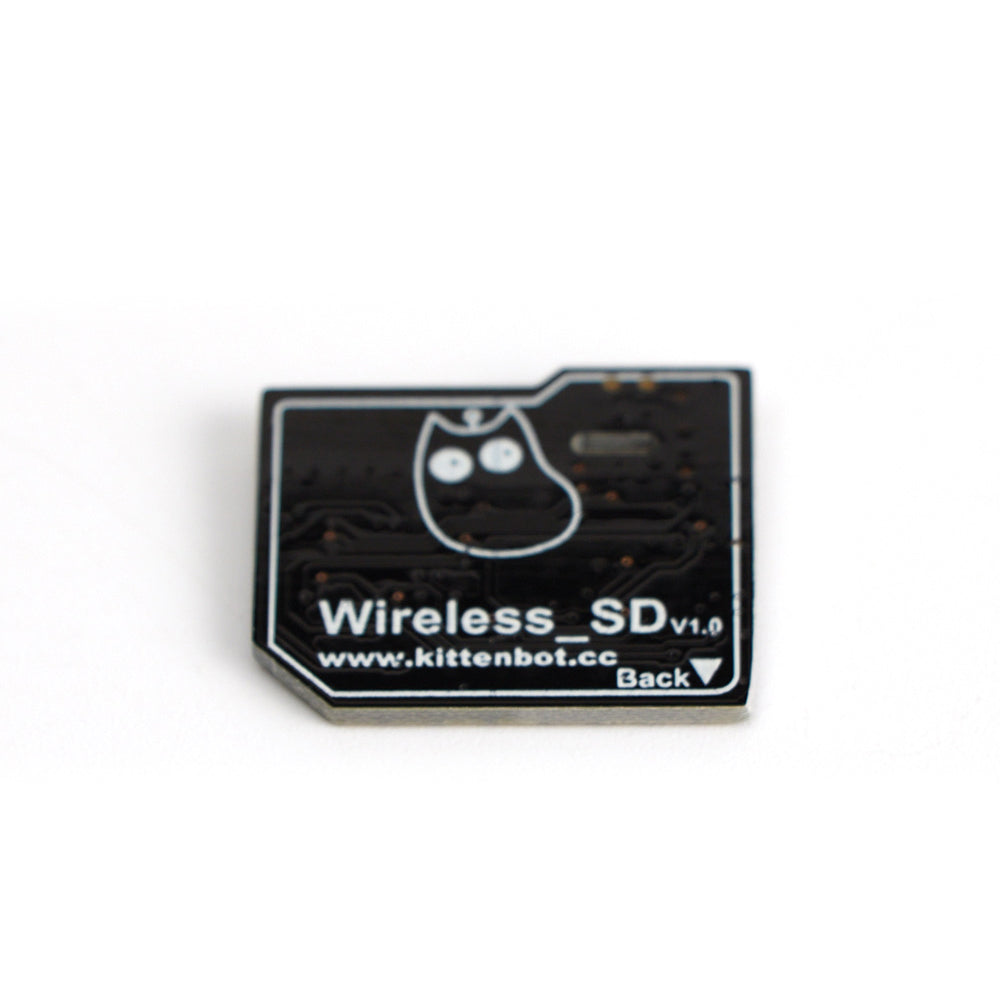

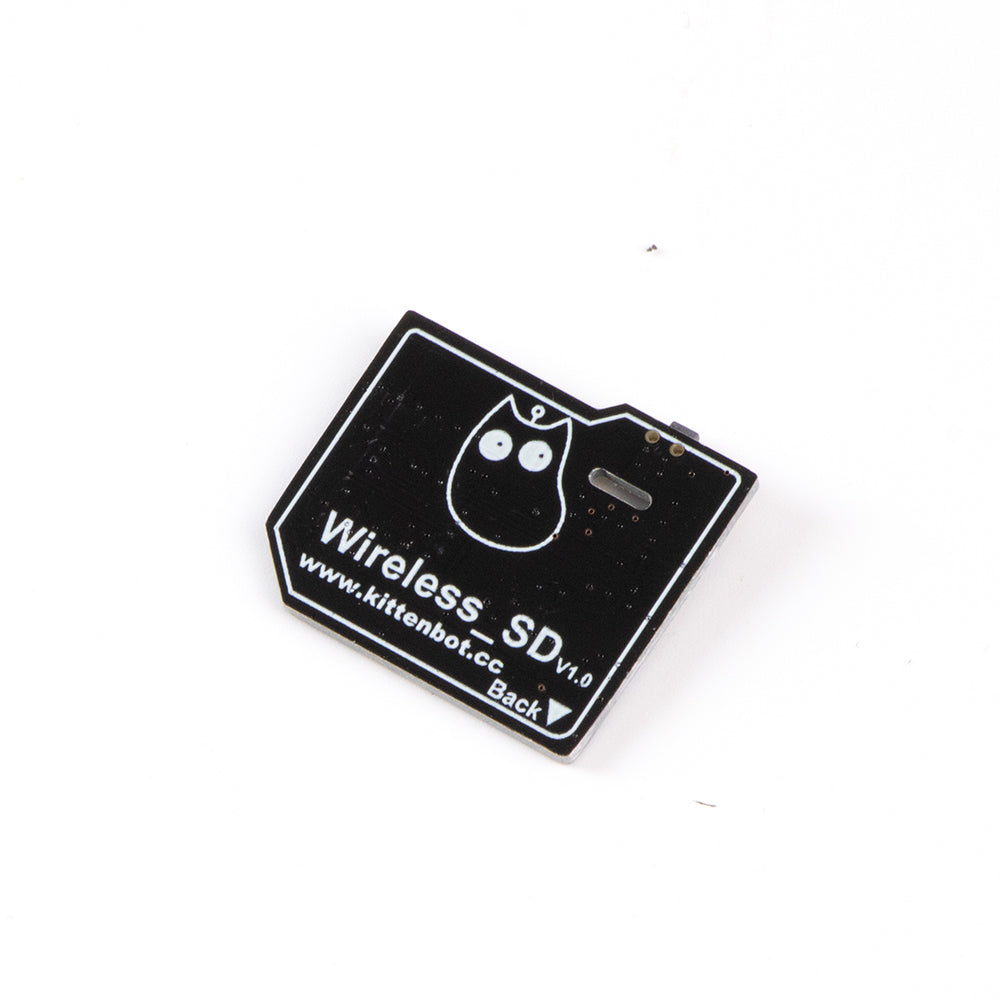

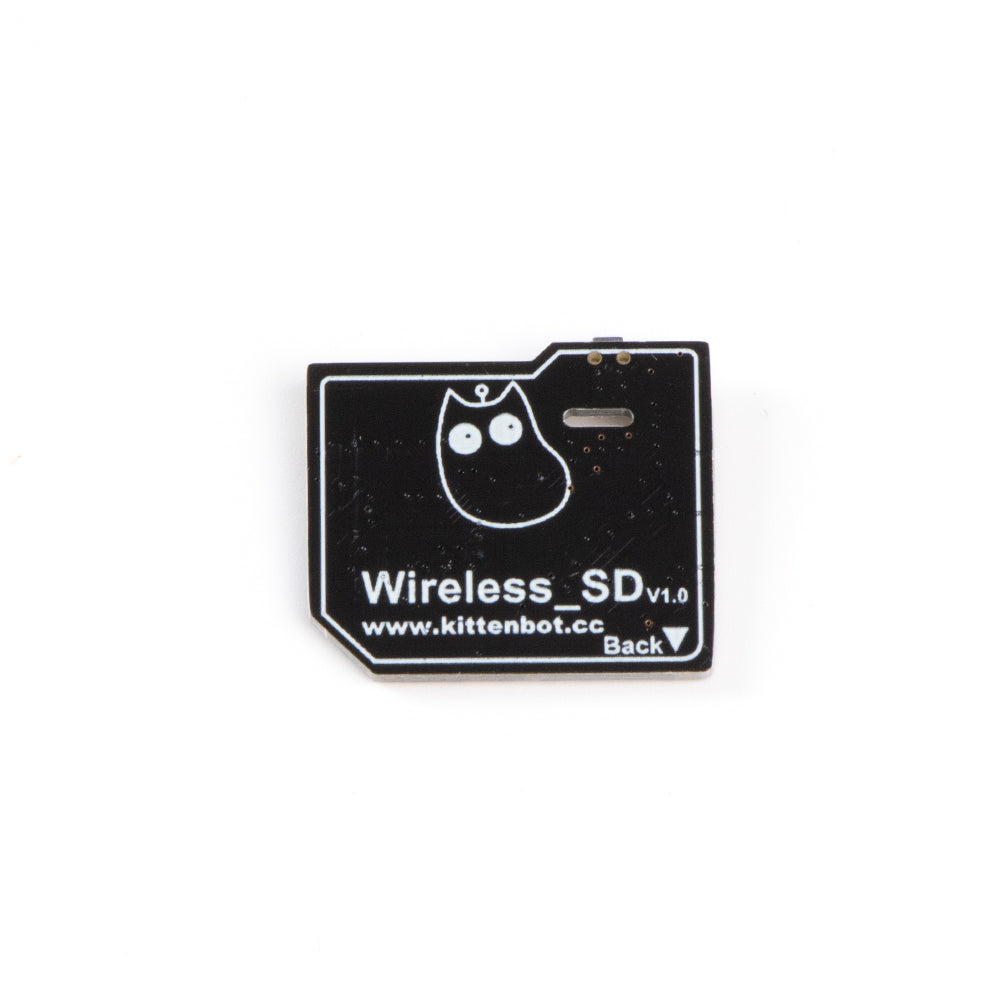

With the Wireless SD Module, we can use Meowbit to communicate with other devices such as Micro:bit.

../_images/sd1.png

../_images/sd2.png

Specifications

  • Chipset: nRF51822 ARM Cortex-M0

  • Frequency: 16Mhz

  • Dimensions: 24x21X3mm

  • Weight: 14g

  • Max distance: 10m

  • Working Voltage: 3.3V

  • Protocols: Wireless 2.4GHz, Bluetooth 2.4G

  • Wireless Mode Indicator (Green for 2.4GHz, Blue for Bluetooth)

  • Mode Toggle Switch

  • Compatible with SD Card slot



Installation Method

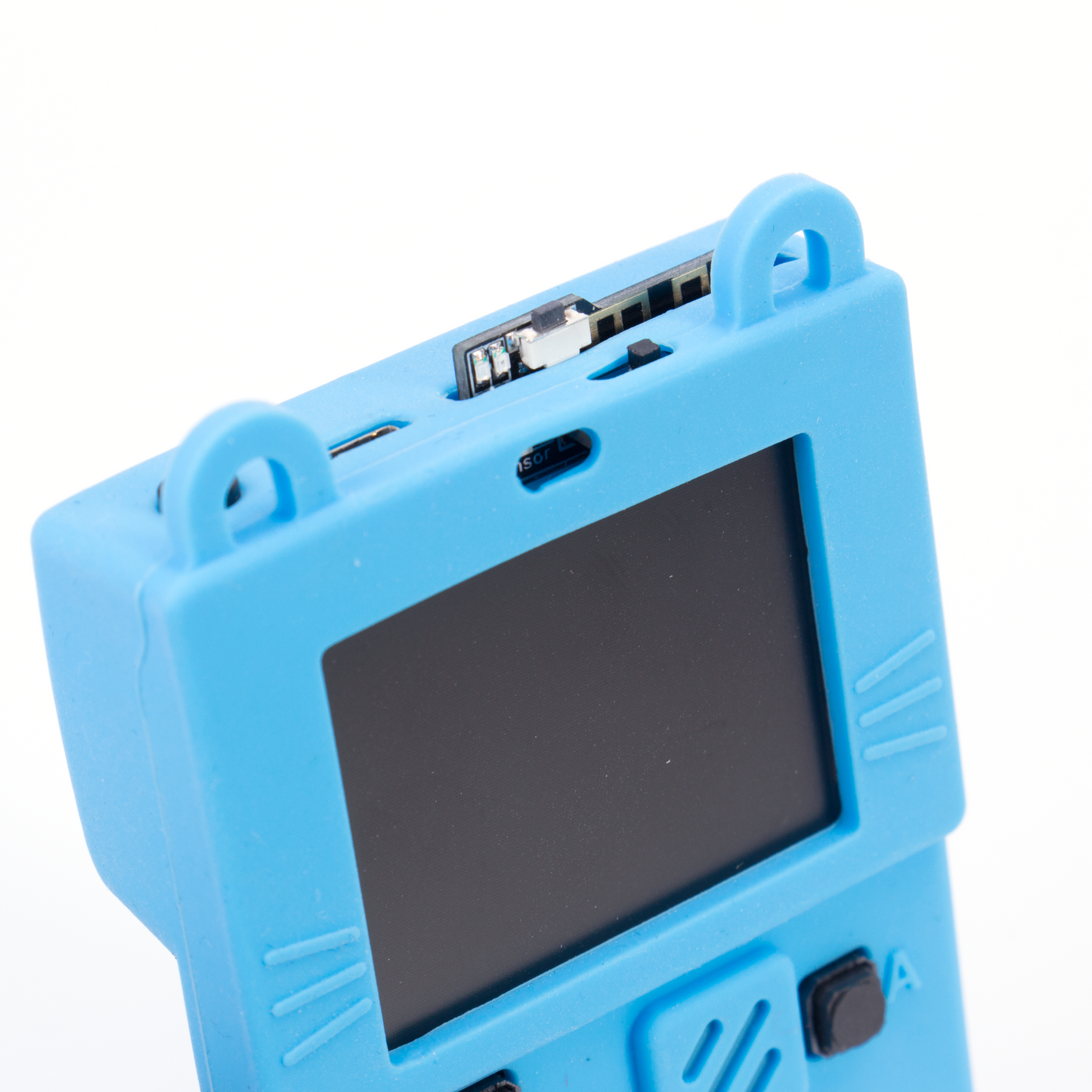

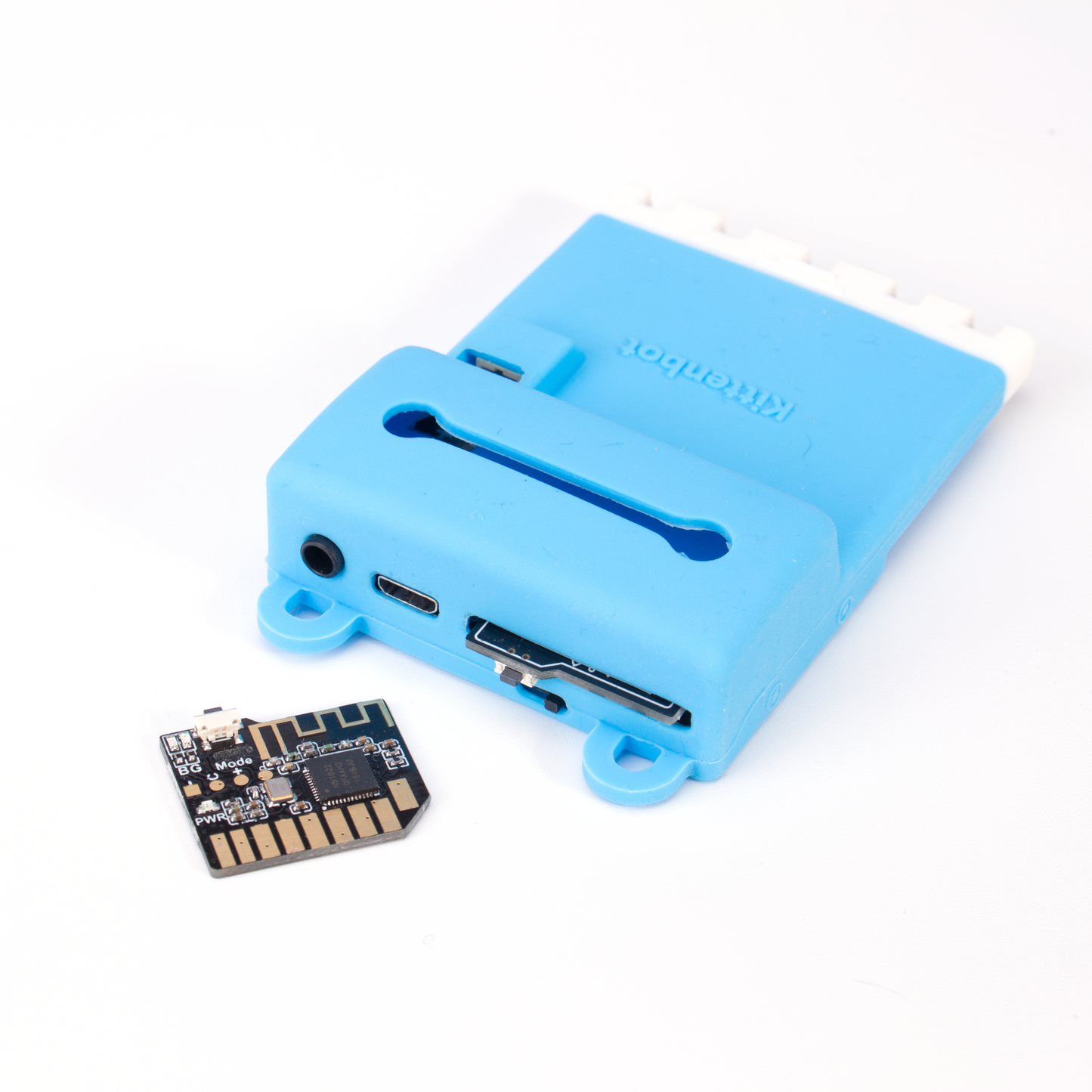

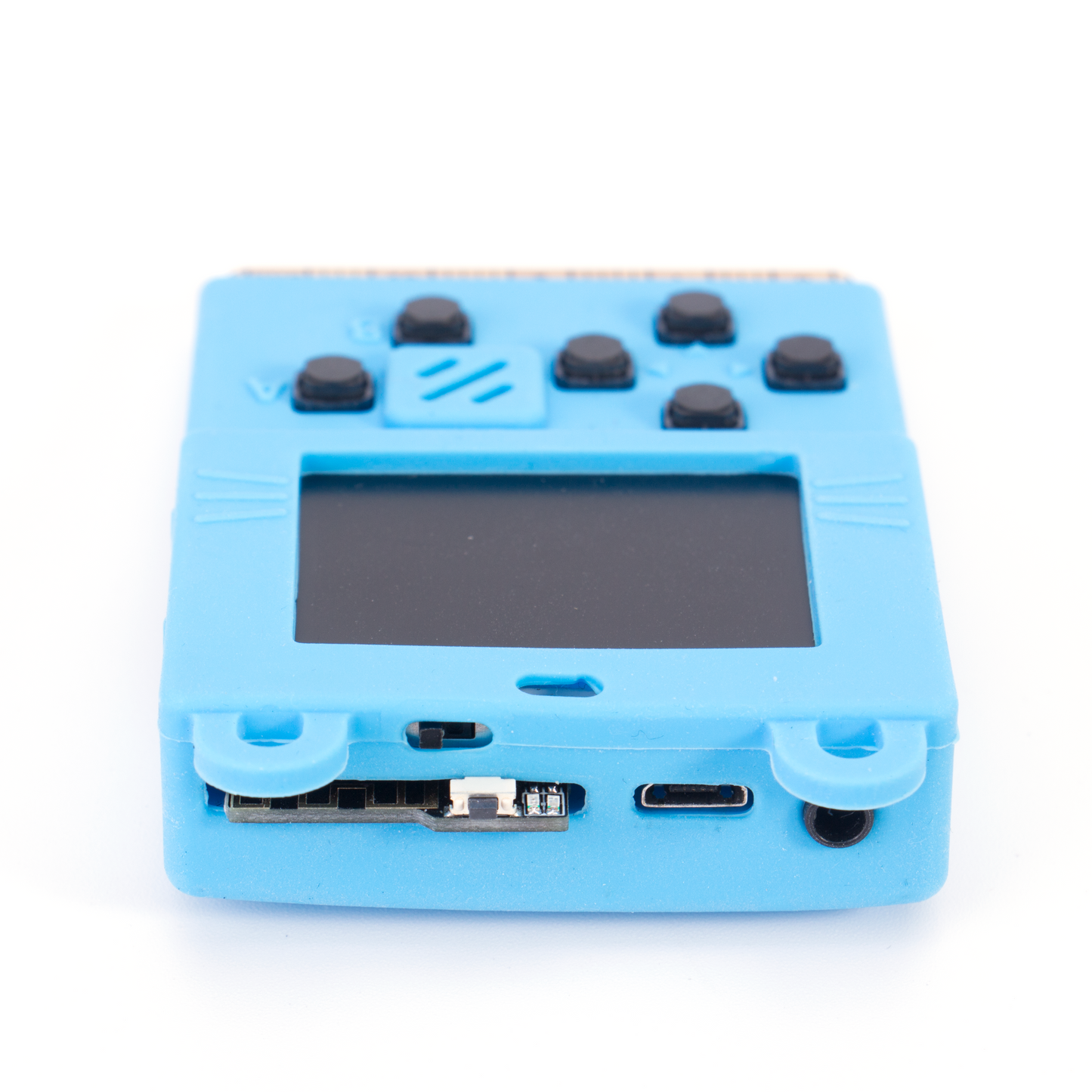

Installation: Insert the module into the SD Card Slot of Meowbit with the golden connectors facing towards you.

../_images/sd3.gif

Removal: Slowly and carefully pull out the module from the slot.

../_images/sd4.gif



Mode Toggle

The button on the top of the module is for switching between modes.

../_images/sd12.gif



MakeCode Arcade Coding Tutorial

../_images/acbanner1.png

Load the extension for the wireless module

Wireless Extension: https://github.com/KittenBot/pxt-sdwireless

Loading Extensions

../_images/sd5_1.png

../_images/sd6_1.png

Blocks for the wireless module

../_images/sd7_1.png

MakeCode Arcade Error Message

This error message may appear in MakeCode Arcade when using the wireless module, this is simply because the emulator cannot emulate the wireless module.

Please ignore and continue.

../_images/sd13.png

Sending data

Data can be sent from Meowbit to the Micro:bit using the 2.4GHz radio.

Meowbit Coding

../_images/sd8_1.png

Microbit Coding

../_images/sd9_1.png

Pressing A or B on the Meowbit causes Micro:bit to display different icons.

Receiving data

Meowbit can also receive data from a Micro:bit using the 2.4GHz radio.

Meowbit Coding

../_images/sd11_1.png

Microbit Coding

../_images/sd10_1.png

Pressing A or B on the Micro:bit causes Meowbit to display different text.
