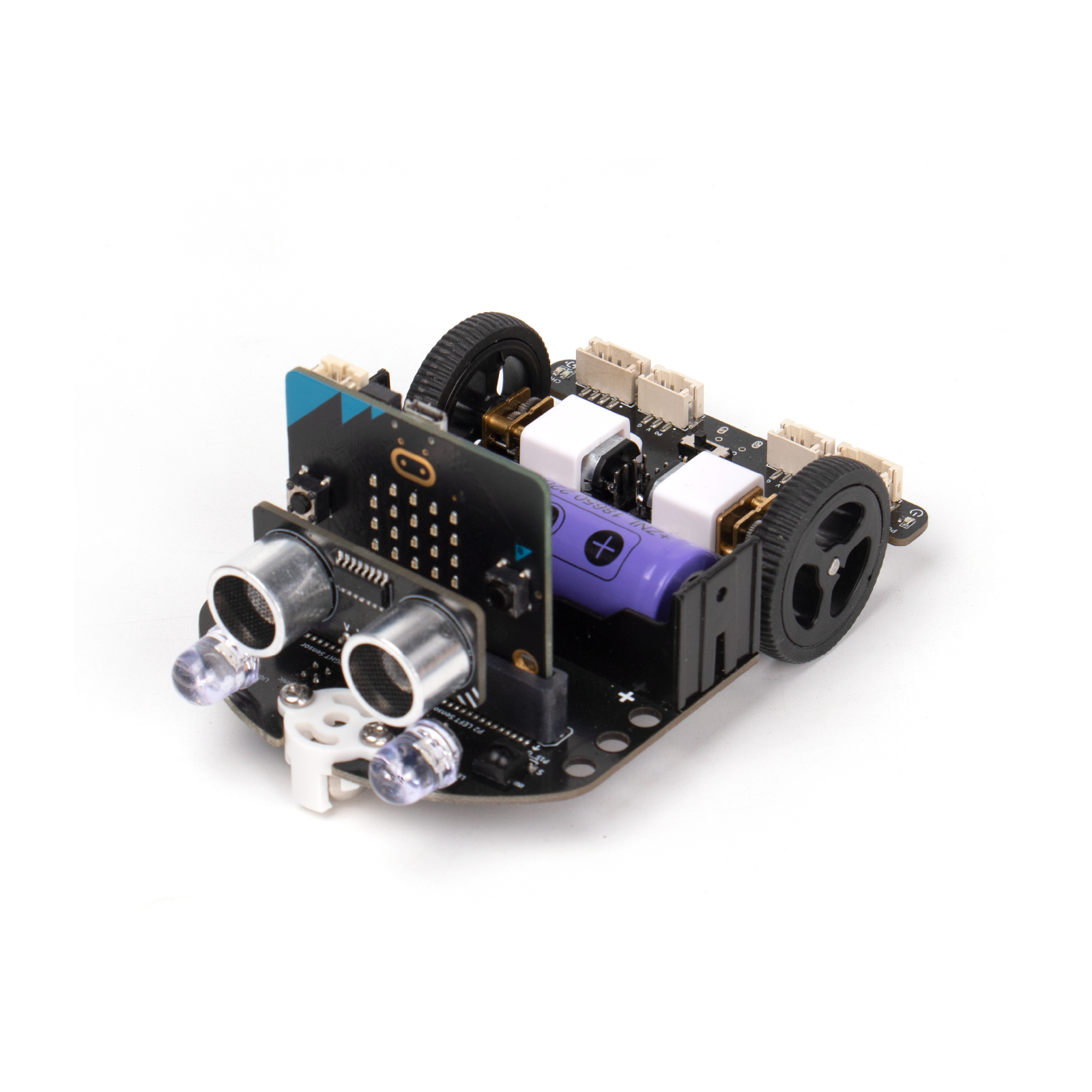

TabbyBot is a STEM robot car designed for Microbit programming. It utilizes a 18650 lithium battery, which provides sufficient power to drive power-hungry modules such as the AI camera module or voice recognition module, eliminating the need for multiple dry batteries. It comes with a built-in charging and discharging circuit, making it convenient to use.

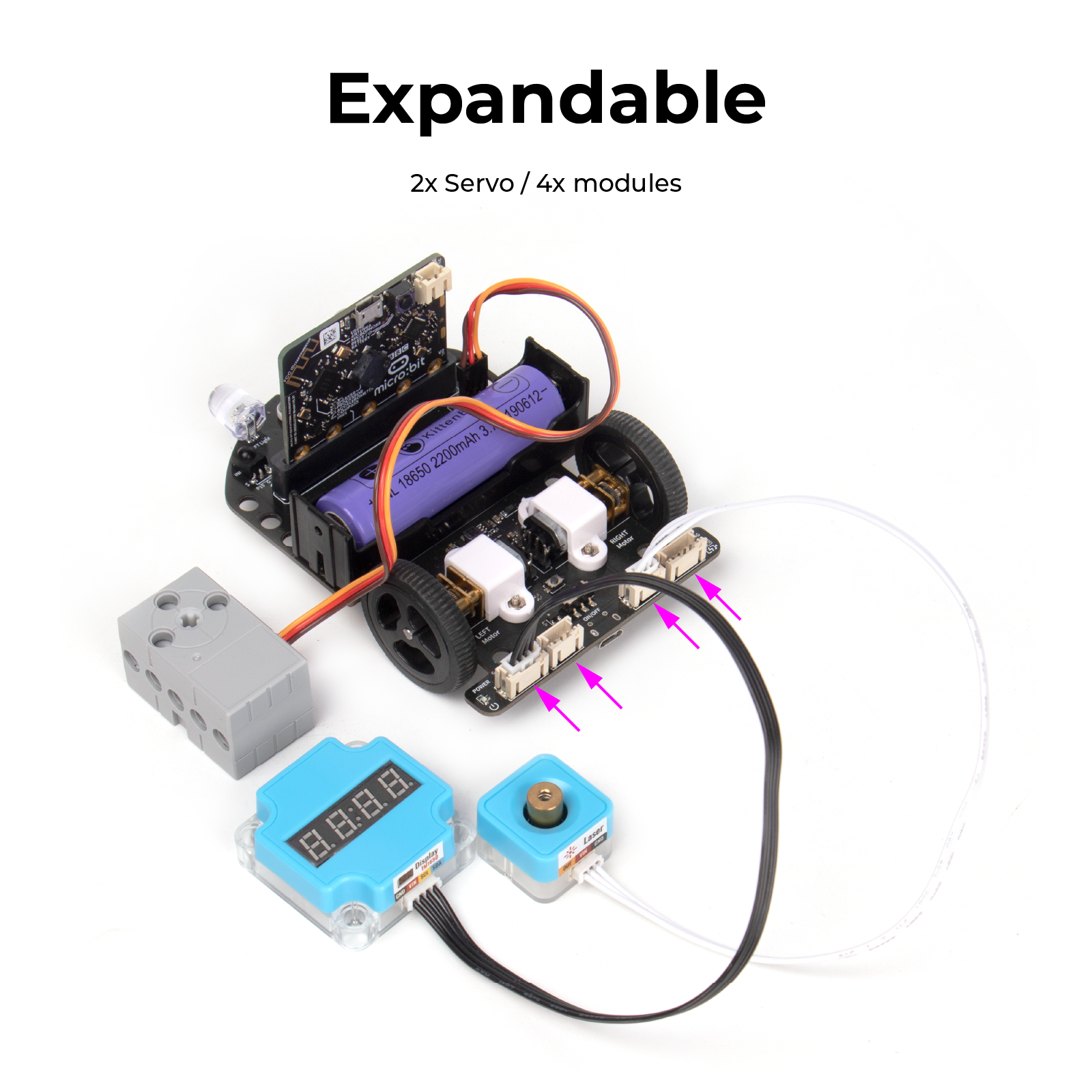

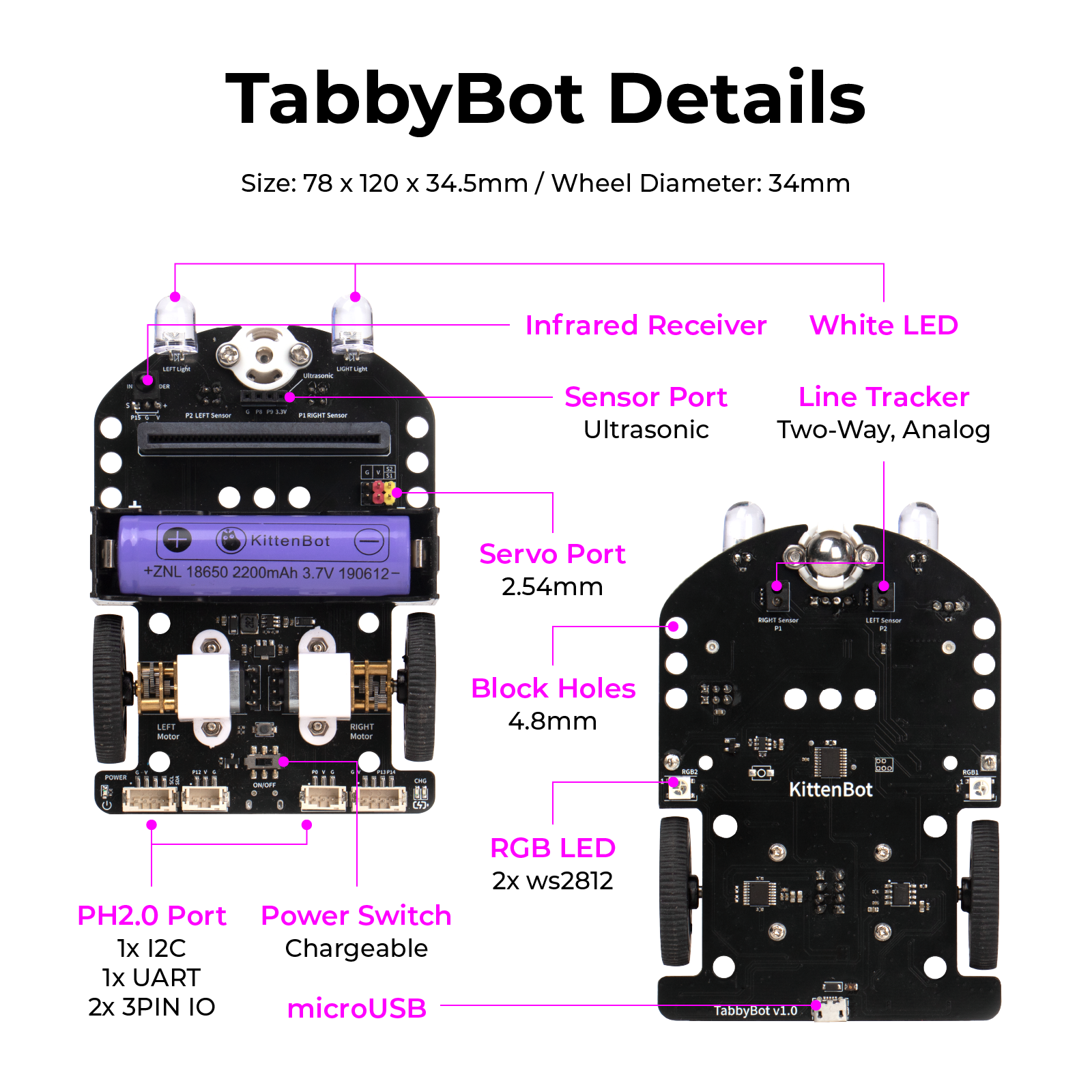

TabbyBot features programmable resources such as LED, RGB, line-following sensor, infrared receiver sensor, ultrasonic sensor, servo motor driver, and motor driver. It also provides 4 programming interfaces for expanding additional sensors.
The board is equipped with LEGO-compatible mounting holes for attaching LEGO structural components.
| Dimensions |
78 x 120 x 34.5mm
|
|
Supply Voltage
|
USB(5V), Lithium battery pack(3.7~4.2V)
|
| Charging |
microUSB |
|
Output Current
|
1A (Max) |
|
Wheel Diameter
|
34mm |
| DC Motor Speed |
250rpm (no-load) |
| Compatible Controller |
micro:bit V1.5 / V2 |
| Programming Platform |
MakeCode |

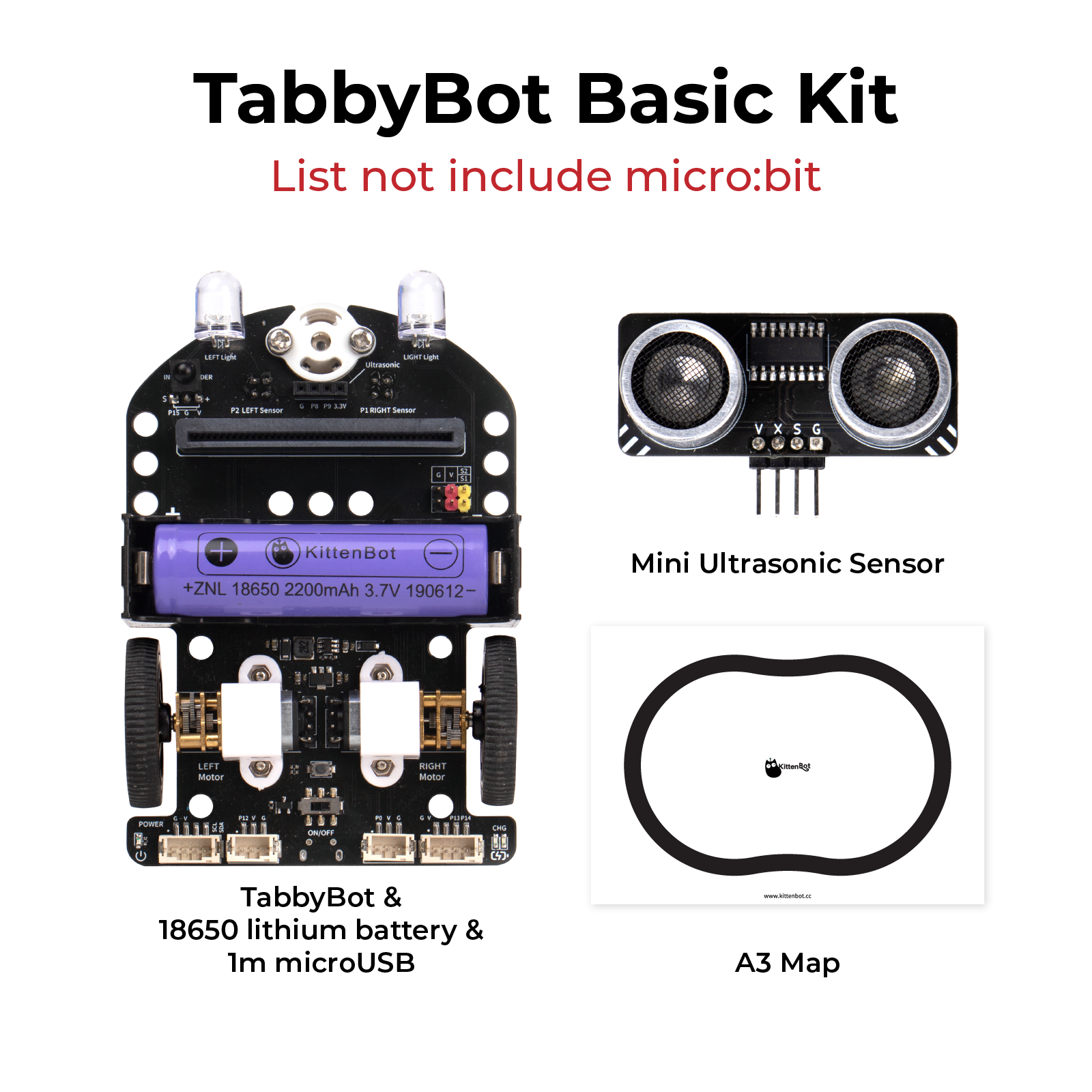

TabbyBot Basic Kit
- 1x TabbyBot
- 1x 18650 lithium battery
- 1x microUSB
- 1x Mini Ultrasonic Sensor
- 1x A3 Map

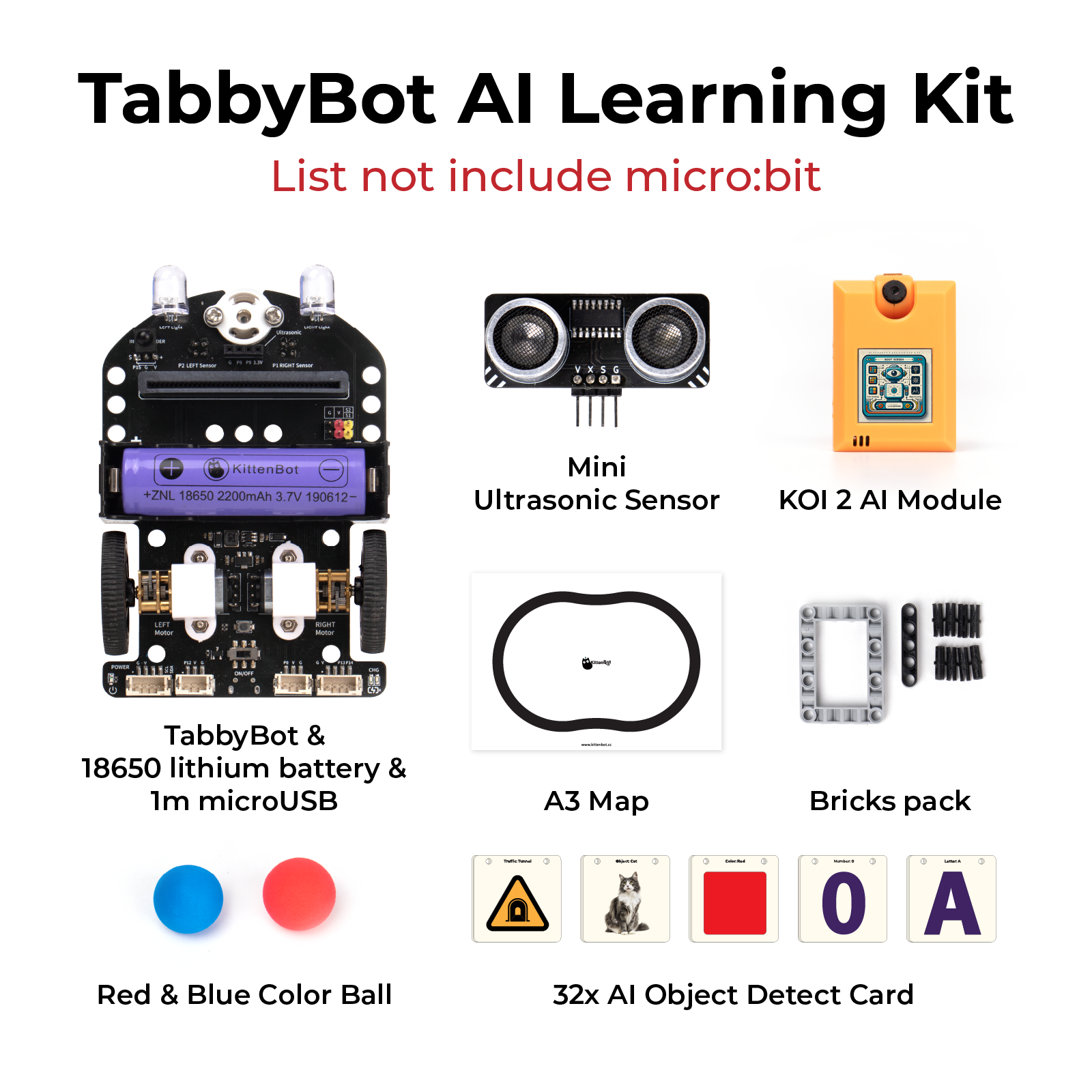

TabbyBot AI Learning Kit
- 1x TabbyBot Basic Kit
- 1x KOI 2 AI Module
- 1x Bricks Pack
- 1x Red&Blue Ball
- 1x AI Object Detect Cards Pack
