KittenBot Red Geekservo 9g Motor
Shipping policy

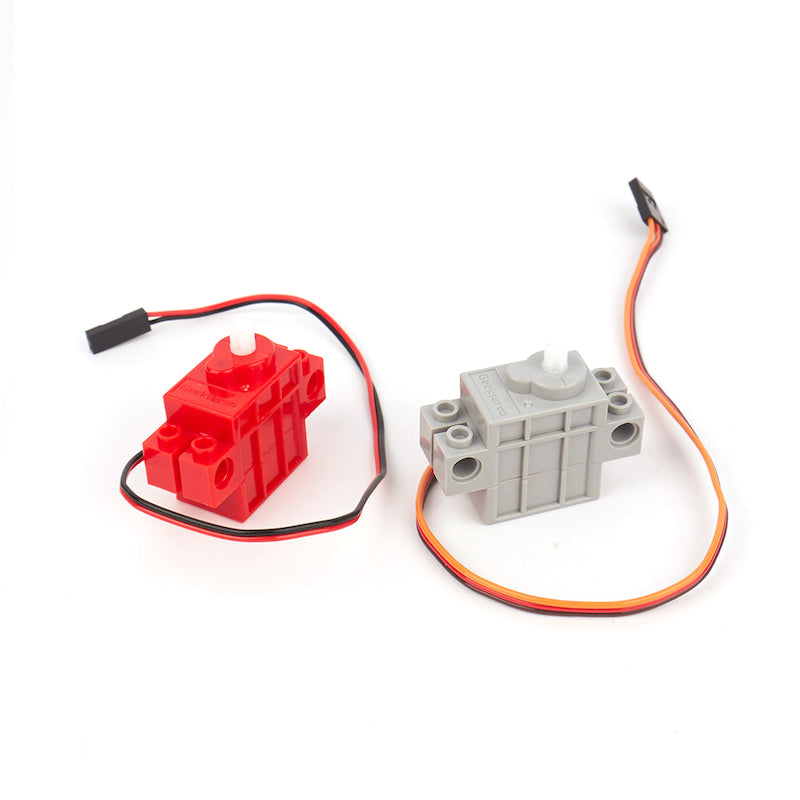

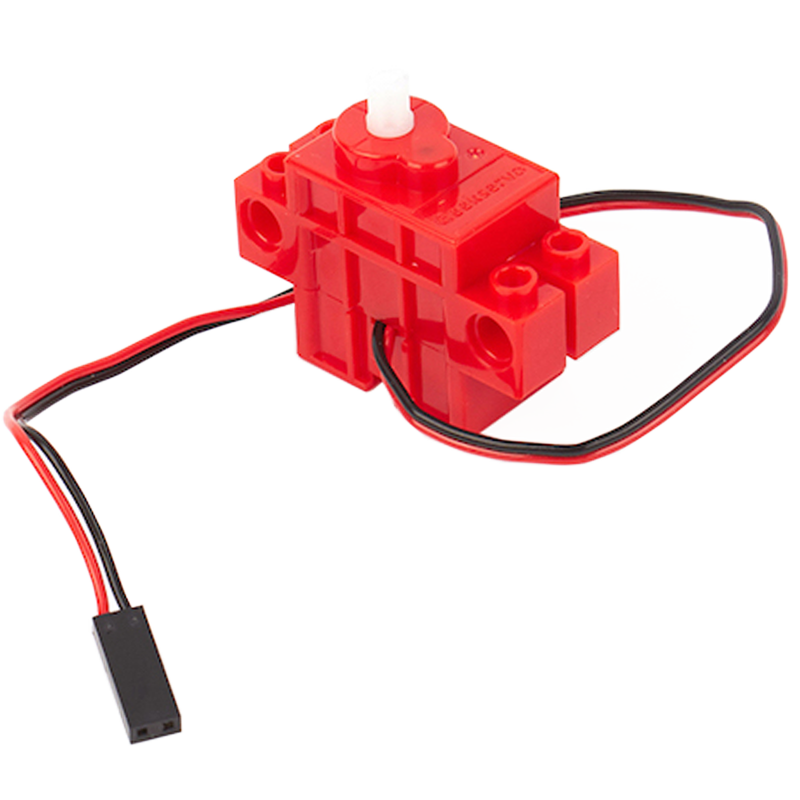

This is a small motor compatible with Lego technic parts, the output axle is compatible with Lego technic axles. It is mainly used in powering robots such as cars and driving gears.
Specifications
-
Voltage: 3.3V~6V
-
Rated Voltage: 4.8V
-
Rated Current: 200ma
-
Blocked Rotor Current: 700ma
-
Slipping Current: 450ma
-
Maximum Torque: 500g/cm(4.8V)
-
Maximum RPM: 70rpm(3V)
-
Weight: 12.4g
Precautions
-
This is only a small motor, please do not use it in situations requiring very high torque and voltage.
-
Geekservo still functions if the connection is reversed, but the rotation direction will be reversed as well.
-
Do not block the rotor for prolonged periods of time or it may damage the motor.

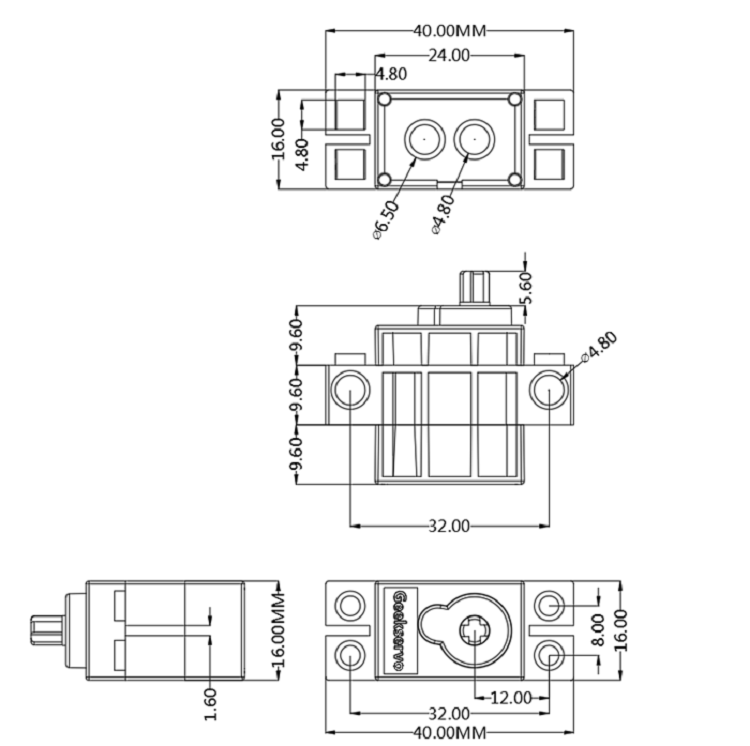

Dimensions:
In Lego units:
-
Length: 5
-
Width: 2
-
Height: 3
-
Output axle: Technic Axle
In mm units:
-
Length: 40mm
-
Width: 16mm
-
Height: 34.4mm
-
Output axle: Technic Axle
Geekservo Features
-
Clutch Protection:
-
In case of violent turning of the output axle, the clutch is enabled to protect the gears from damage.
-
-
Flexible Installation:
-

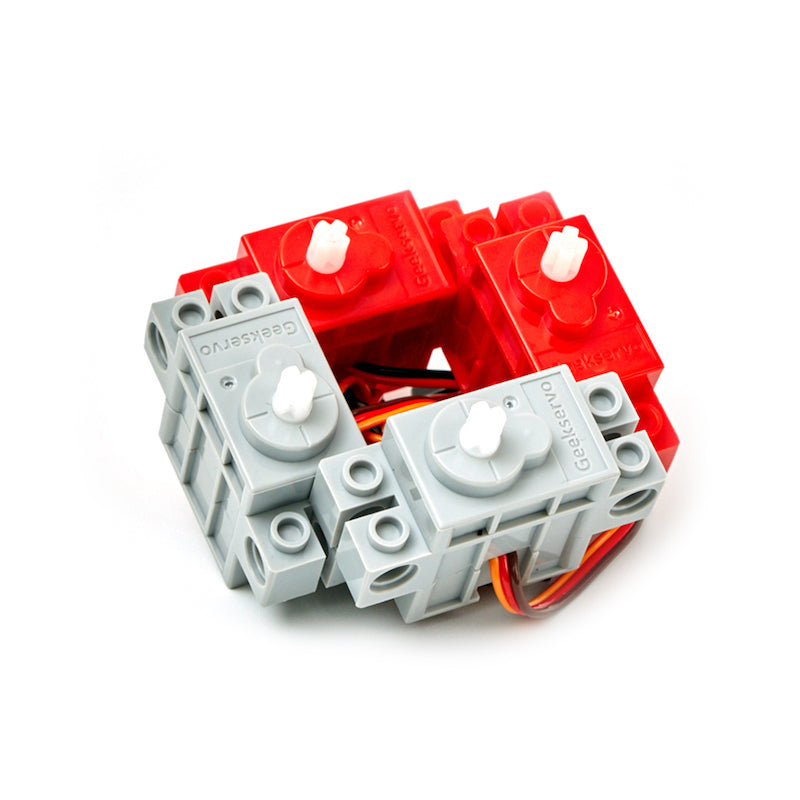

Can be mounted on standard Lego bricks or with Technic elements, providing a lot of possibilities for installation.
-
-
Small and lightweight:
-
Suitable for small robotic projects.
-

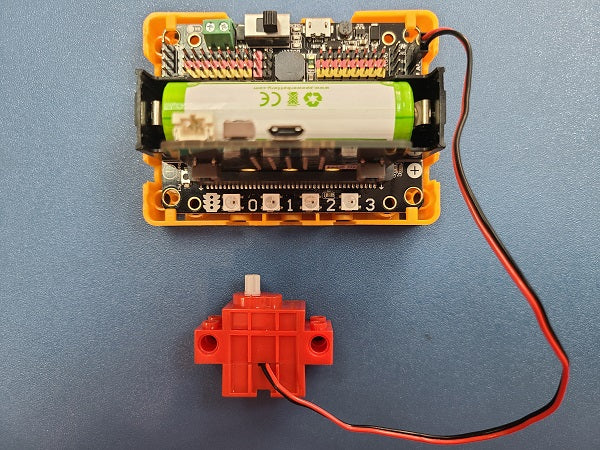

Connection
RobotBit

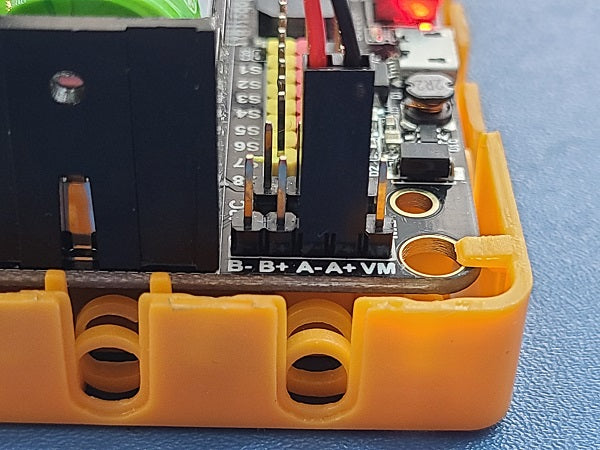

Connect the motor to the motor ports on the Robotbit.
(Connect to the A+A- of M1 or the B+B- of M2)
Reversing the connection would not damage the motor, but the rotational direction will be reversed.
