KittenBot KOI 2 Artificial Intelligence Module K210

Name: KittenBot KOI 2 Artificial Intelligence Module K210
Brand: KittenBot
SKU: KBA9213A
Price: 69.9 USD
Availability: OutOfStock

$79.90 USD

$69.90 USD

Shipping calculated at checkout.

In stock!

Color

Product variants

Product description

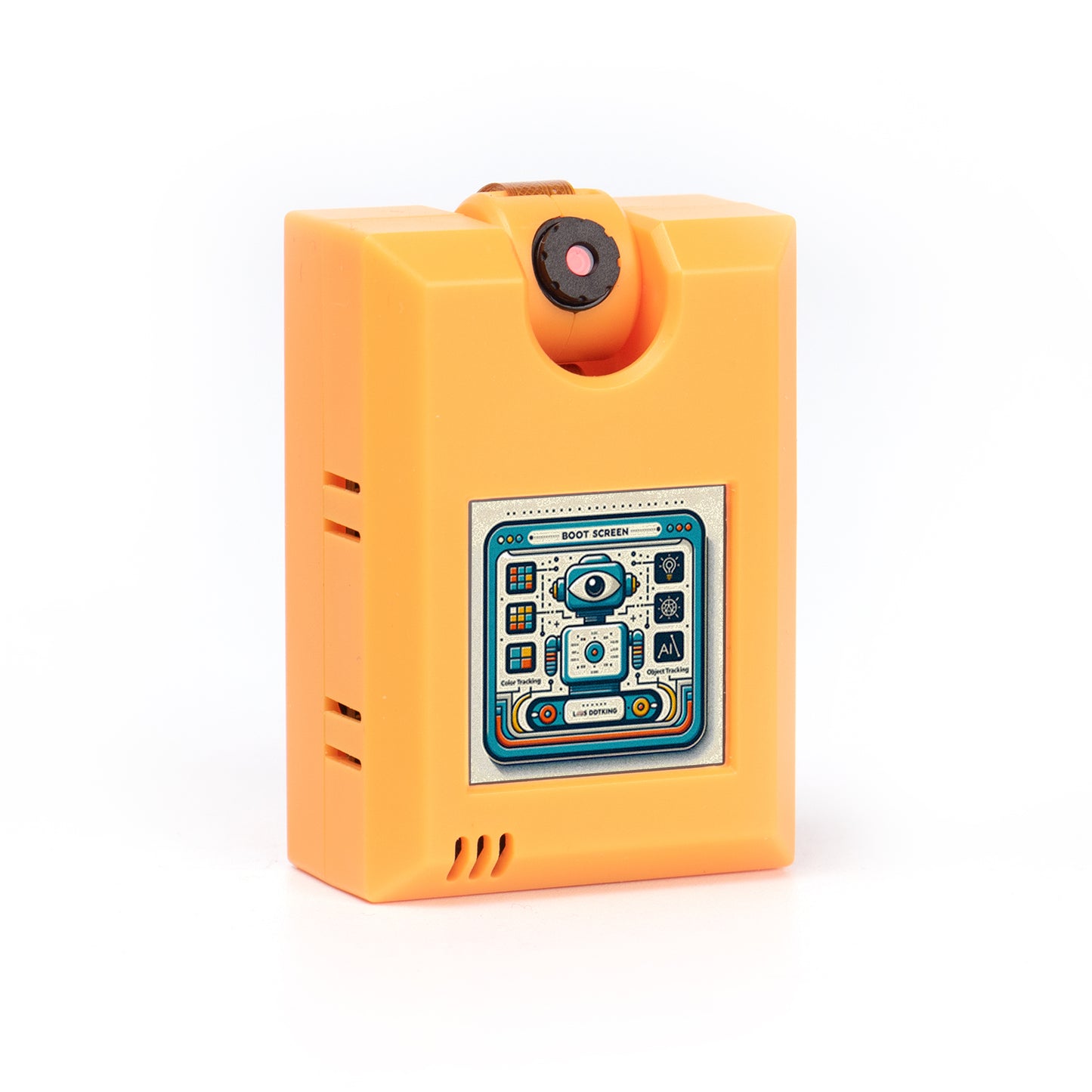

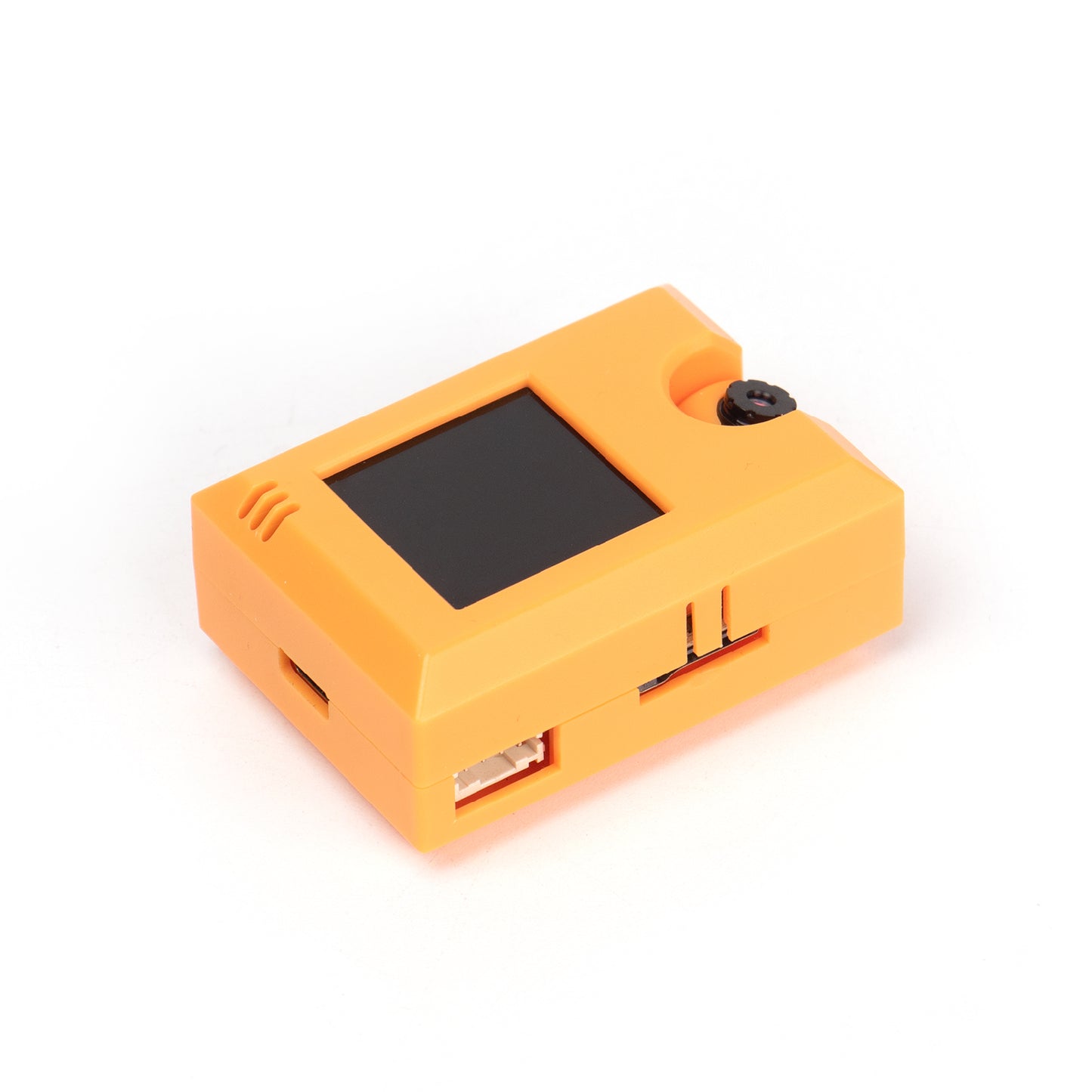

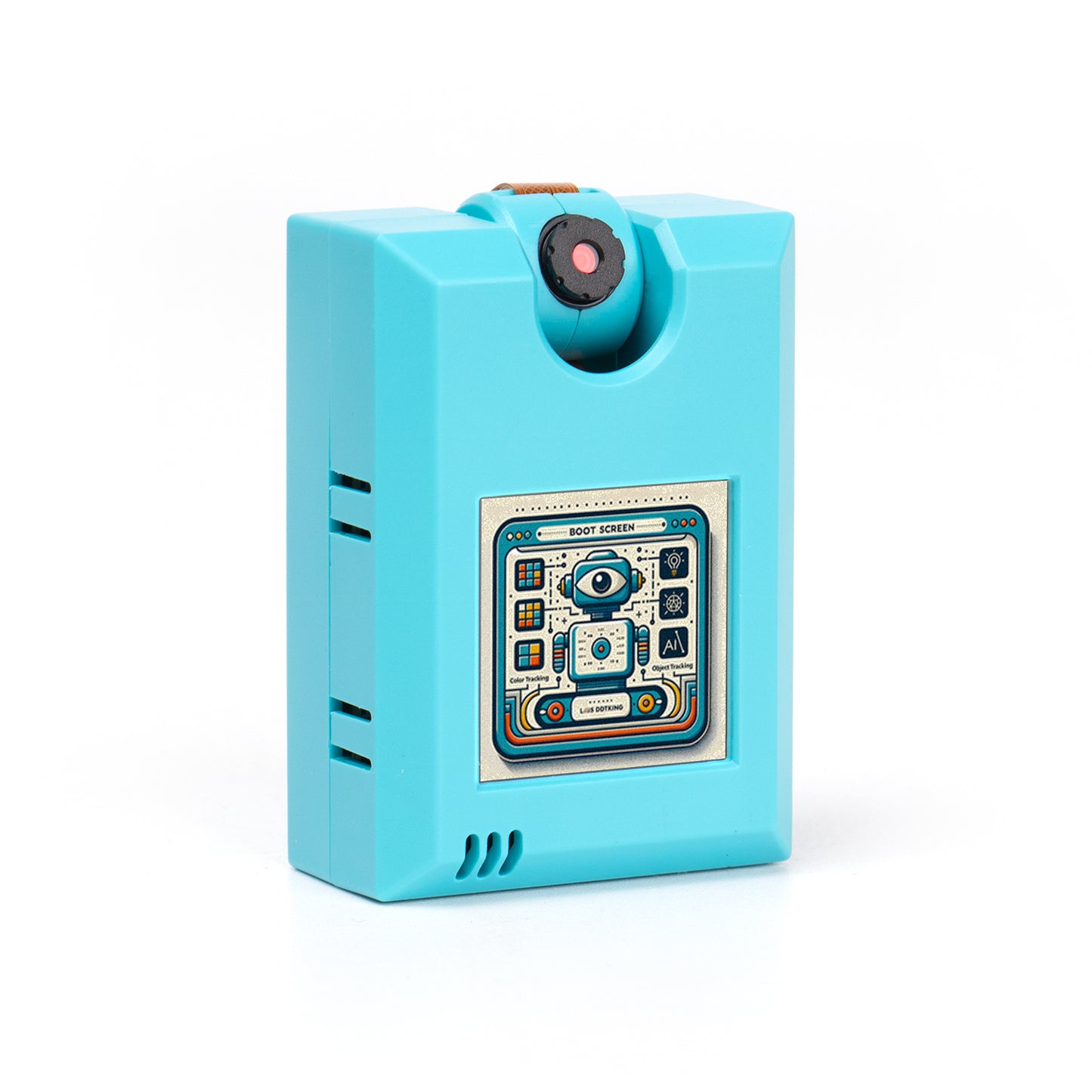

KOI2 is an AI camera module based on the K210 chip from KittenBot Technology, which aims to combine advanced AI technology and high-performance embedded systems to provide strong support for visual recognition and intelligent AI applications. It comes with hardware such as a screen, camera, speaker, microphone, and buttons, which can fully unleash the capabilities of AI applications. It has a front and rear flip camera, a plastic case with Lego structural holes, providing a richer and more convenient building form, meeting the classroom and project needs of educational scenarios.

We provide friendly Kittenblock and MakeCode extension, which combine KOI2 with the main control board to use graphical programming to explore the new world of AI.

Features

Complete AI functionality to meet the needs of AI projects

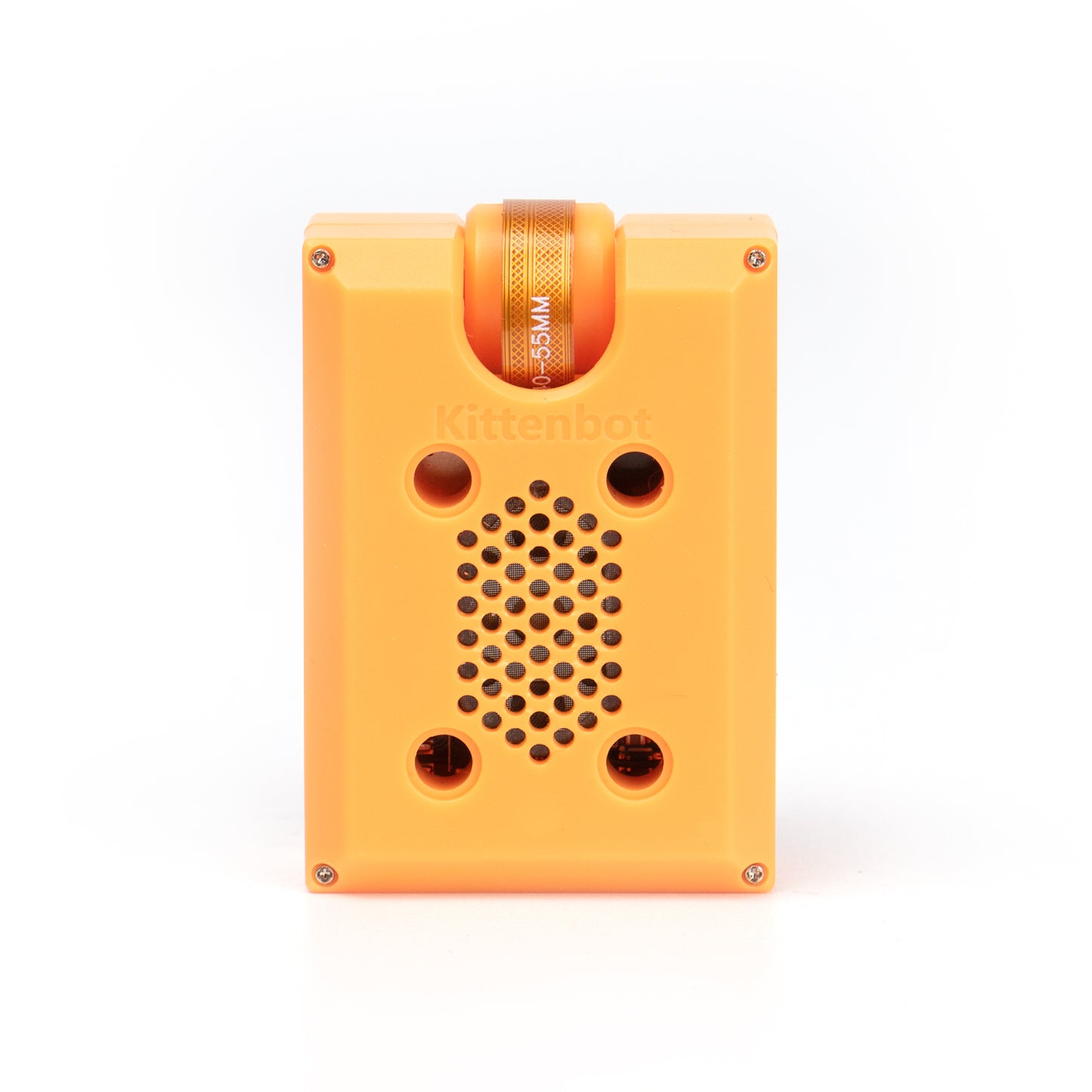

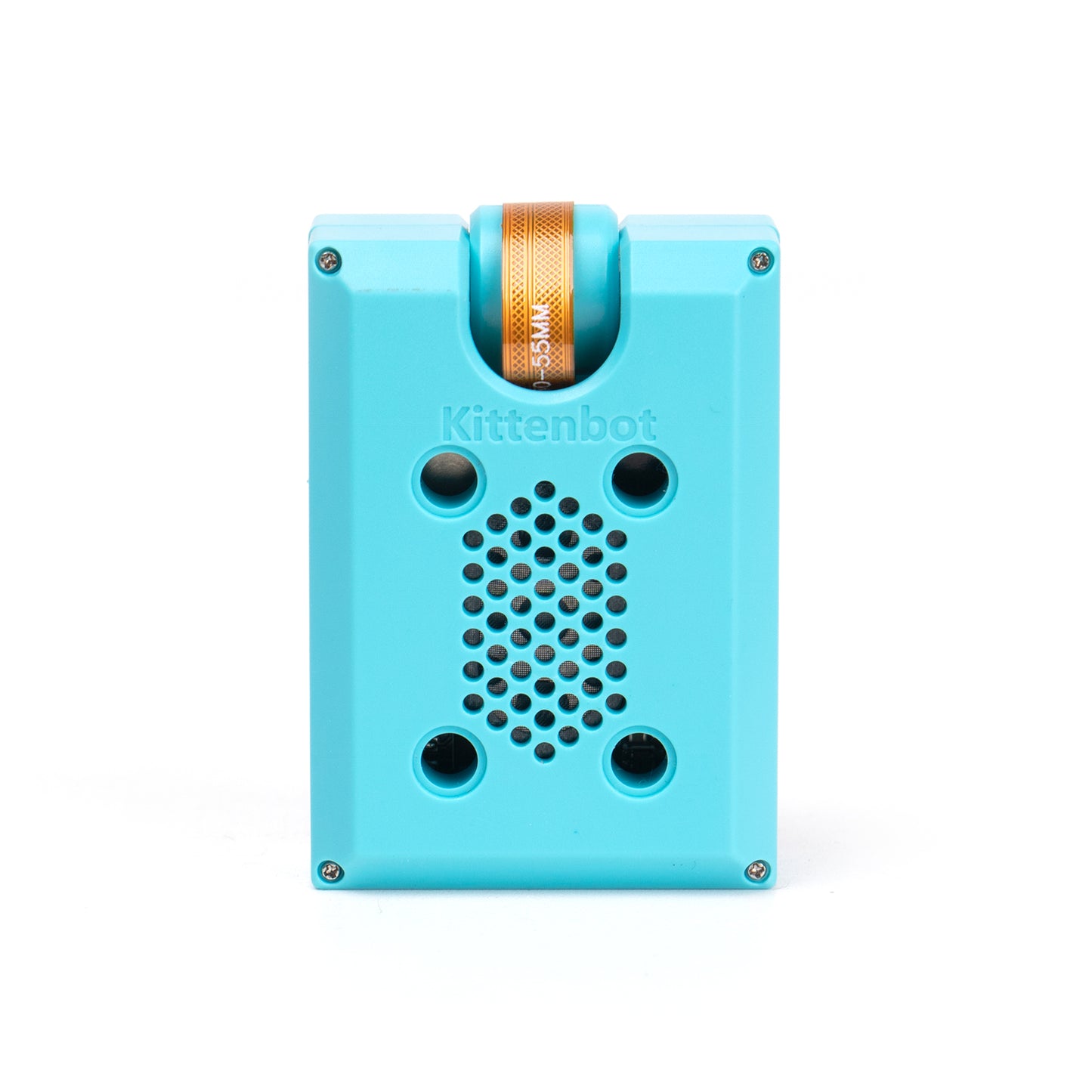

Flippable camera for greater flexibility
Seamless integration of graphical and code programming, suitable for both beginners and makers
Ability to independently train machine models

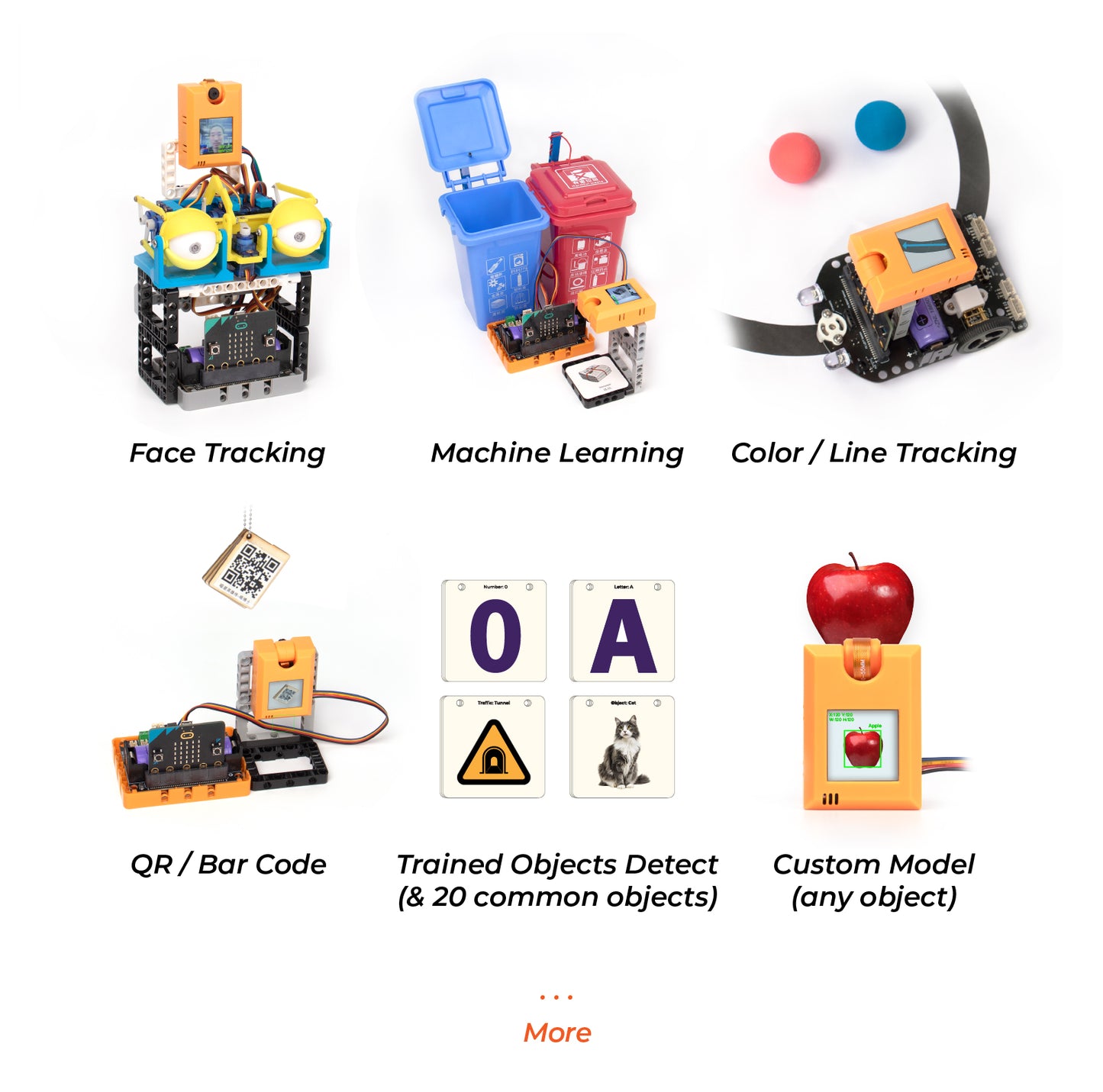

Applications

Function	Detail	Sample
Basic function	Screen direction control Screen character display On-board AB buttons Recording and playback Screenshot	/
IoT	MQTT	/
Color tracking	Track color blocks of specific colors. Built-in several colors, and custom learning colors are also available	Color blob object tracking
Line tracking	Track lines of specific colors. Built-in several colors, and custom learning colors are also available	Visual line following
Face detection	Attribute, gender, smile, glasses, open mouth, number of people, Detect whether a mask is worn	Face tracking robot
Classification	Machine learning feature classification, unlimited number of classifications	Rock-paper-scissors robot Garbage classification device
Code Scan	QR code Barcode	Book lending system
Card image recognition	Letter A~F Number 0~9 Traffic sign Plane, ship, bicycle, bus, car, motorcycle, train	Only applicable to the supporting letter cards provided by KittenBot
Object recognition	Plane, ship, bicycle, bus, car, motorcycle, train, Bird, horse, cow, sheep, human, cat, dog, Bottle, chair, table, potted plant, sofa, TV	/
Self-training model	Self-training can recognize any object, and is different from feature classification and can recognize the position and size of objects. It requires self-photographing, calibration, and training, which is suitable for advanced players.	/

Parameters


MCU	k210
Flash	16MB
Overall dimension	584024mm

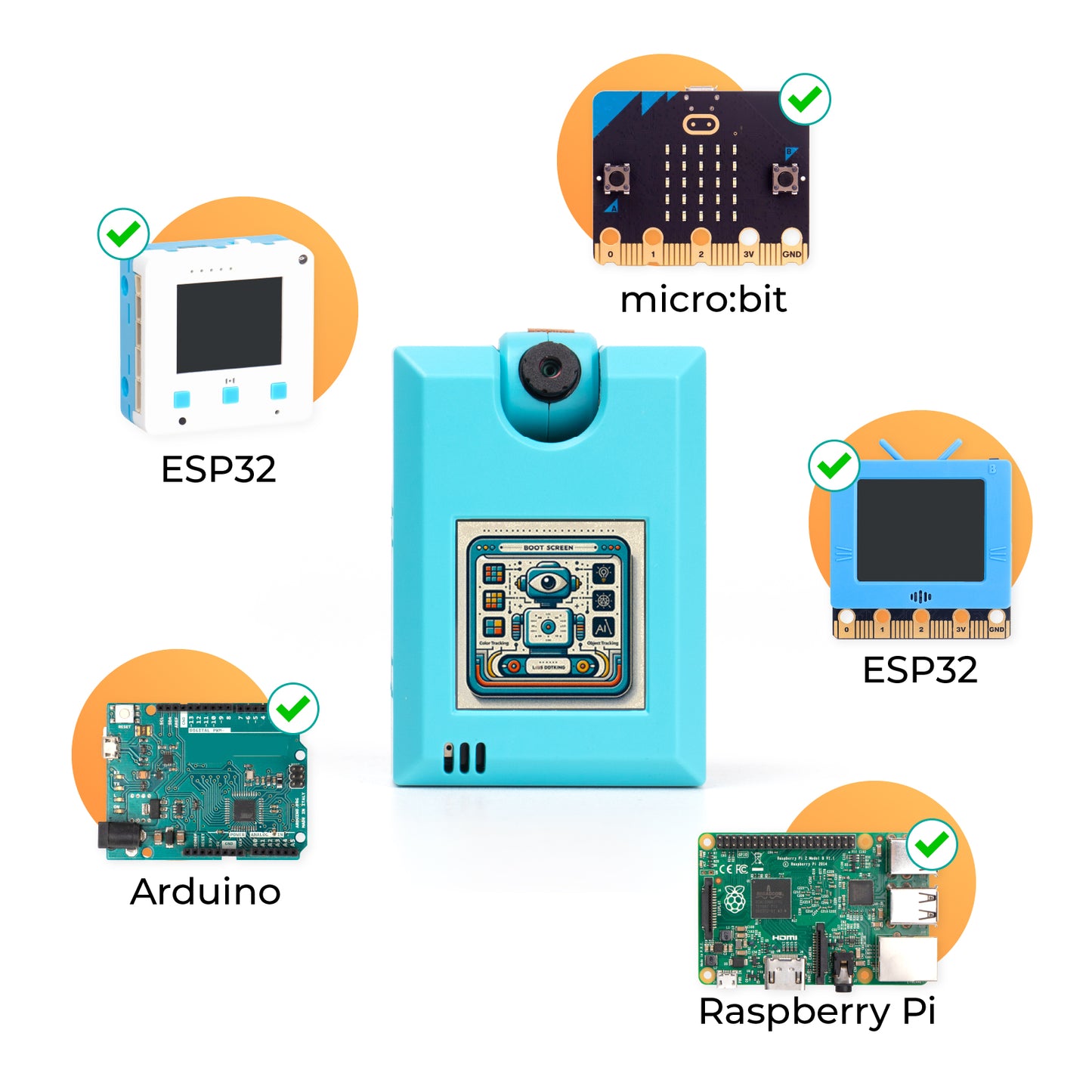

Main control supported	micro:bit, Meowbit, Arduino series and any microcontroller with serial port function
Display	1.3 "IPS screen (240x240)
Camera	RGB (640x480 )
Audio input / output	48K single channel sample rate output 8K sample rate microphone input
Wireless communication	WiFi (Based on Esp8285)
Data output mode	UART / WiFi / USB
Button	2 (programmable)
SD card	TF Card
Memory Card support	≤16G
Power supply voltage	3.3~5V

Programming environment

KOI2 is a serial communication module that, in theory, can be utilized on any platform. Below are the programming platforms for which we have already provided sample cases.：

MakeCode extension: github:Kittenbot/pxt-koi2
