- Vendor: KittenBot

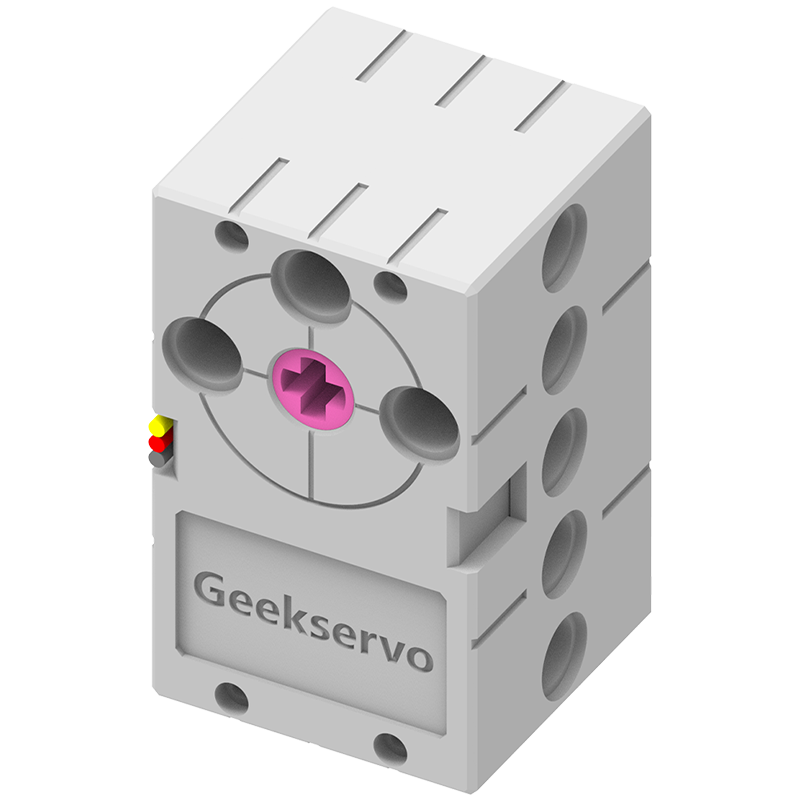

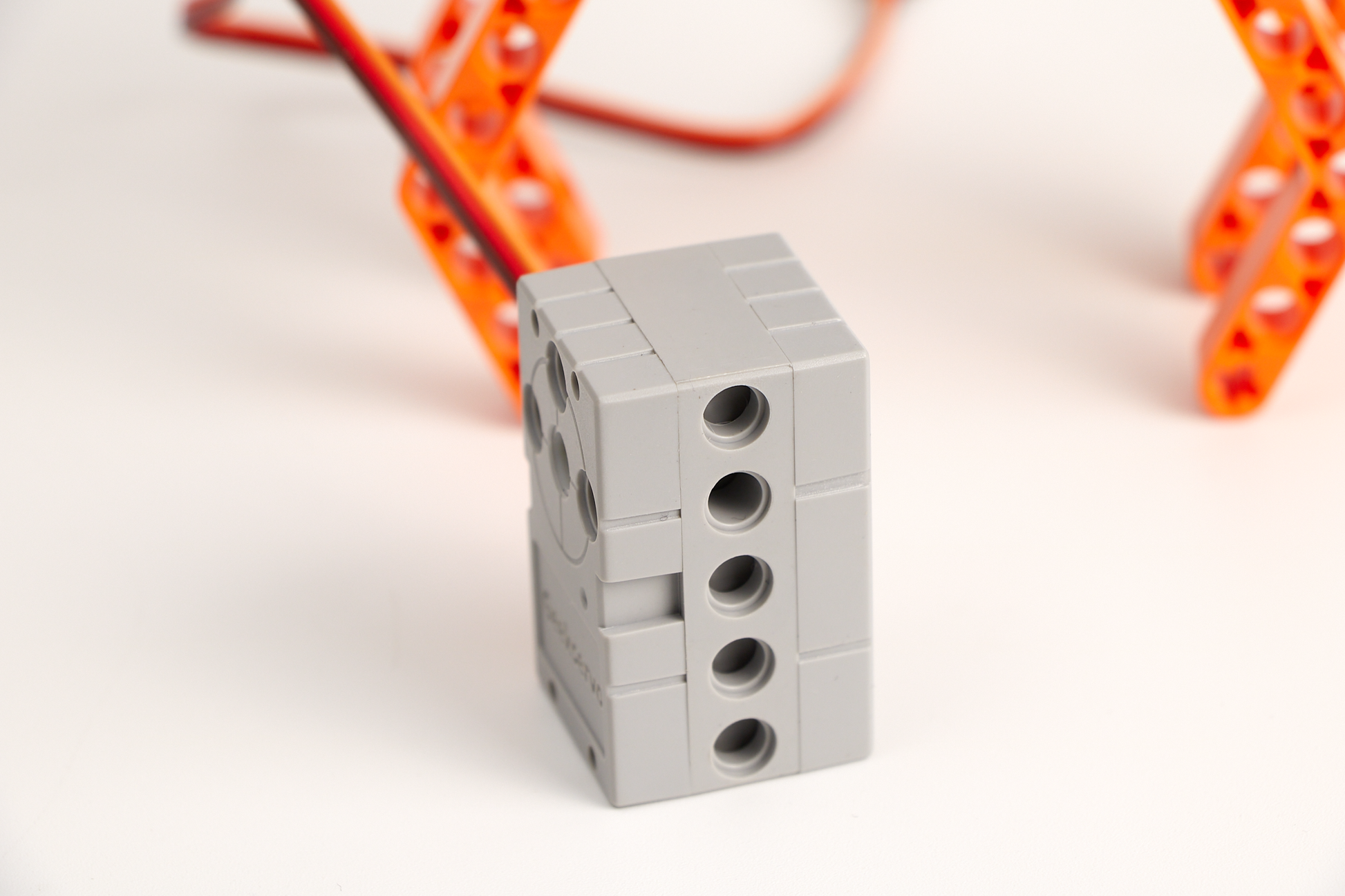

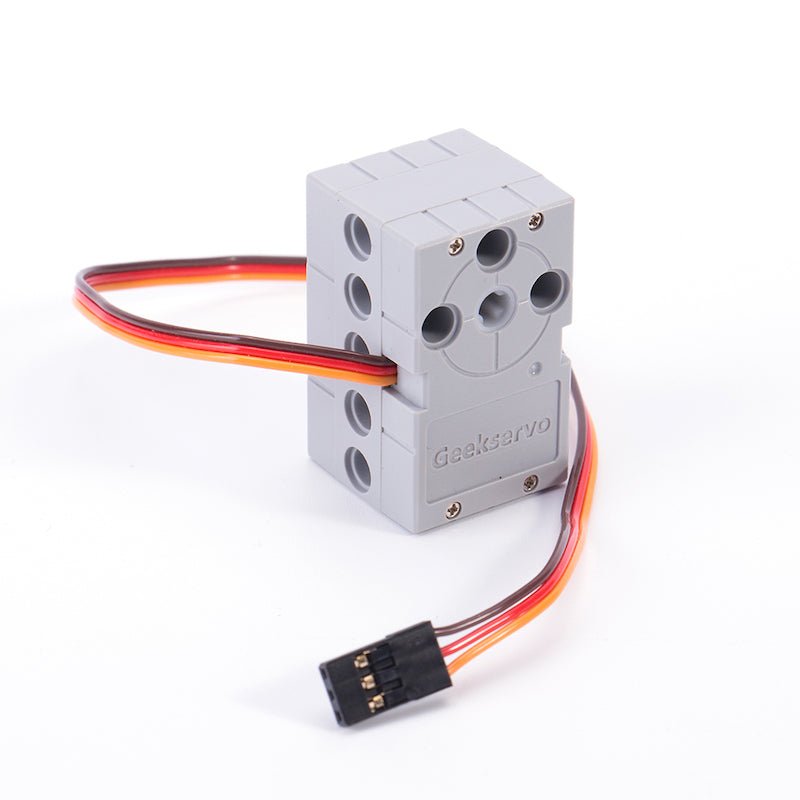

KittenBot Grey GeekServo 2KG Servo for microbit/ arduino projects
This is a servo compatible with Lego technic parts, compared to 9g Servos, it can produce higher torque. The output axle is a Lego technic axle connector. It is suitable for applications where precise control is required.
Specifications
-
Operating Voltage: 3.3V~6V
-
Rated Voltage: 4.8V
-
Rated Current: 70mA
-
Blocked Rotor Current: 900mA
-
Slipping Current: 700mA
-
Maximum Torque: 1.6kg±0.2kg/cm(4.8V)
-
Rotational Speed: 60°/0.14s
-
Rotational Range: 0°~360°
-
Weight: 20g
-
Connector: Orange-Red-Brown Servo Connector
Special Features
Inherits the special features of the 9g servo while improving torque and speed at the same time.
-
Uses an axle connector for output
-
Allows connecting axles of different lengths to better suit your needs
-
-
Dual Outputs
-
Output axles are found on both sides
-
-
Larger rotational range
-
Has a full 360° range
-
-
Higher Torque
-
About 3 times the torque of a 9g servo
-
Dimensions
In Lego units:
-
Length: 5
-
Width: 3
-
Height: 3
-
Output Axle: Technic Axle
In mm units:
-
Length: 40mm
-
Width: 24mm
-
Height: 24mm
-
Output Axle: Technic Axle
Connection
RobotBit
Connect the servo to the servo ports of the Robotbit.
Orange to Yellow, Red to Red, Brown to Black.
