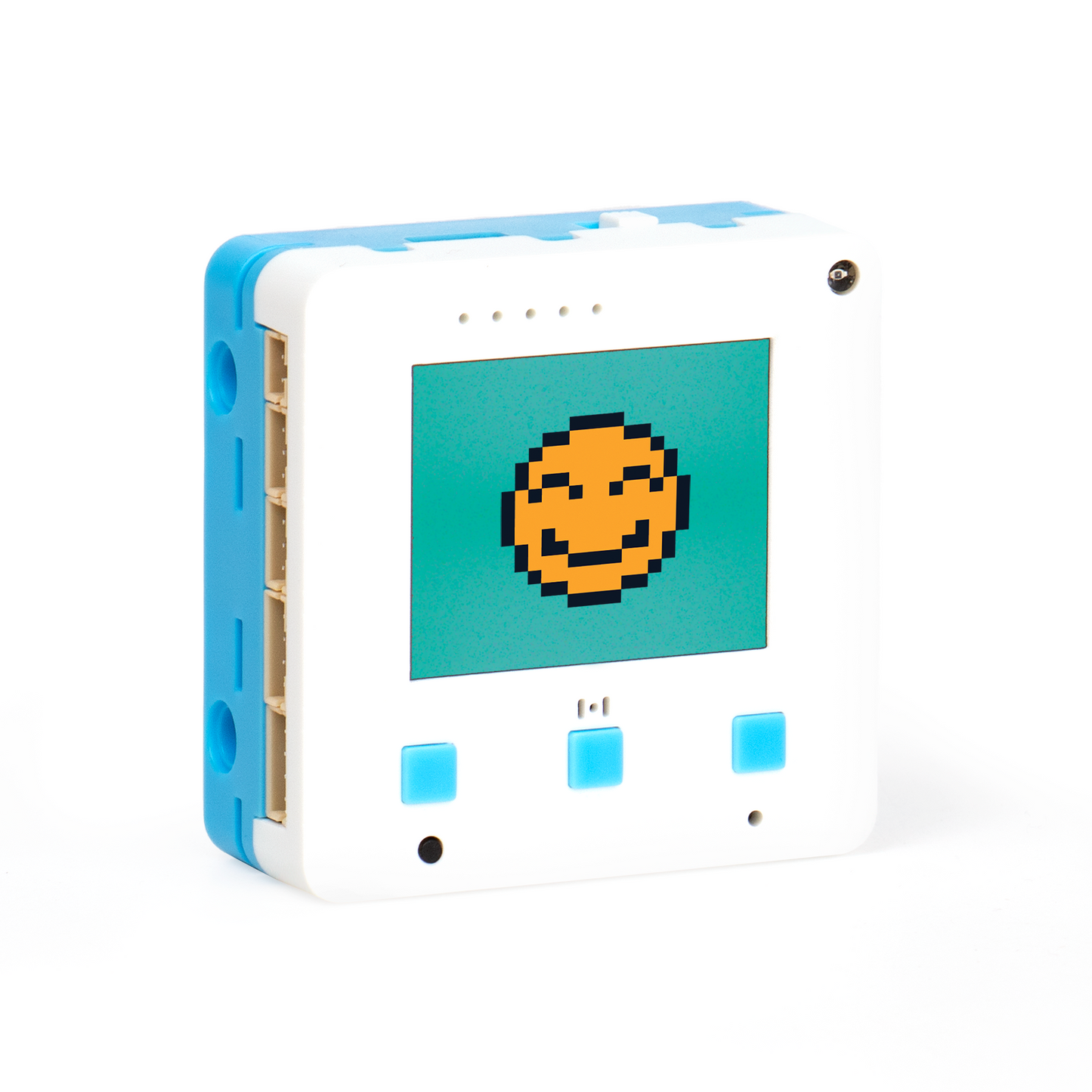

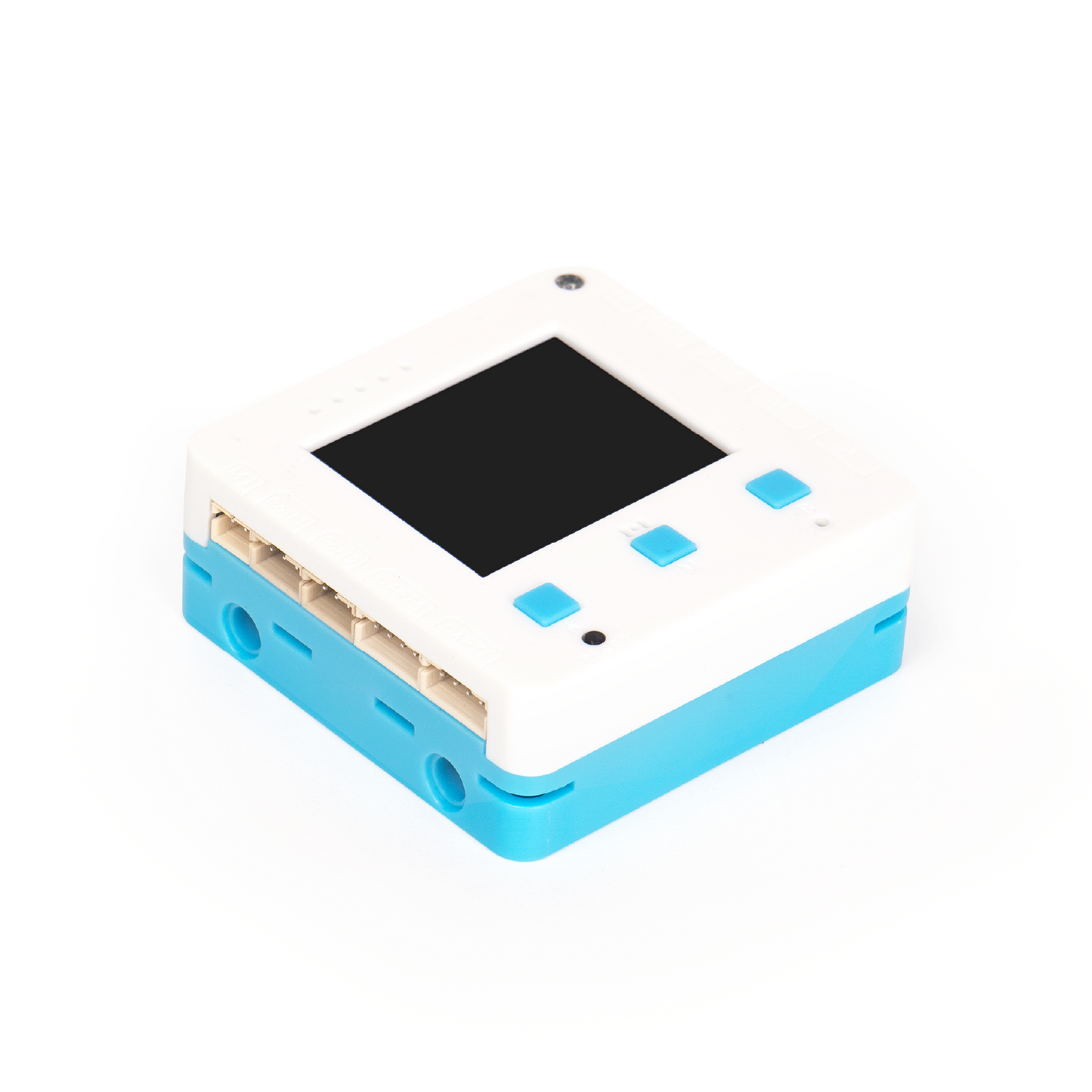

KittenBot FutureBoard Lite, ESP32 S3 AIOT Educational Controller

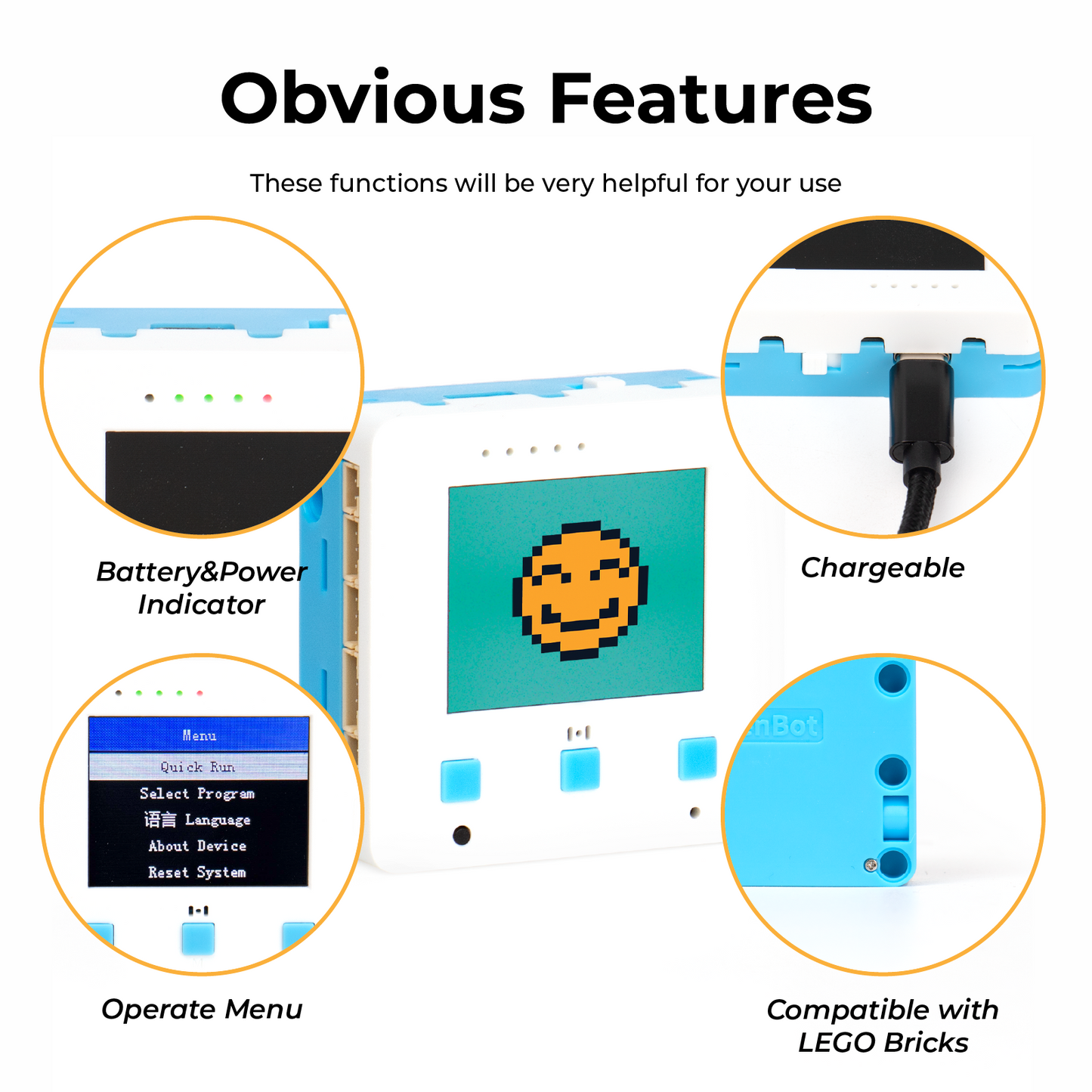

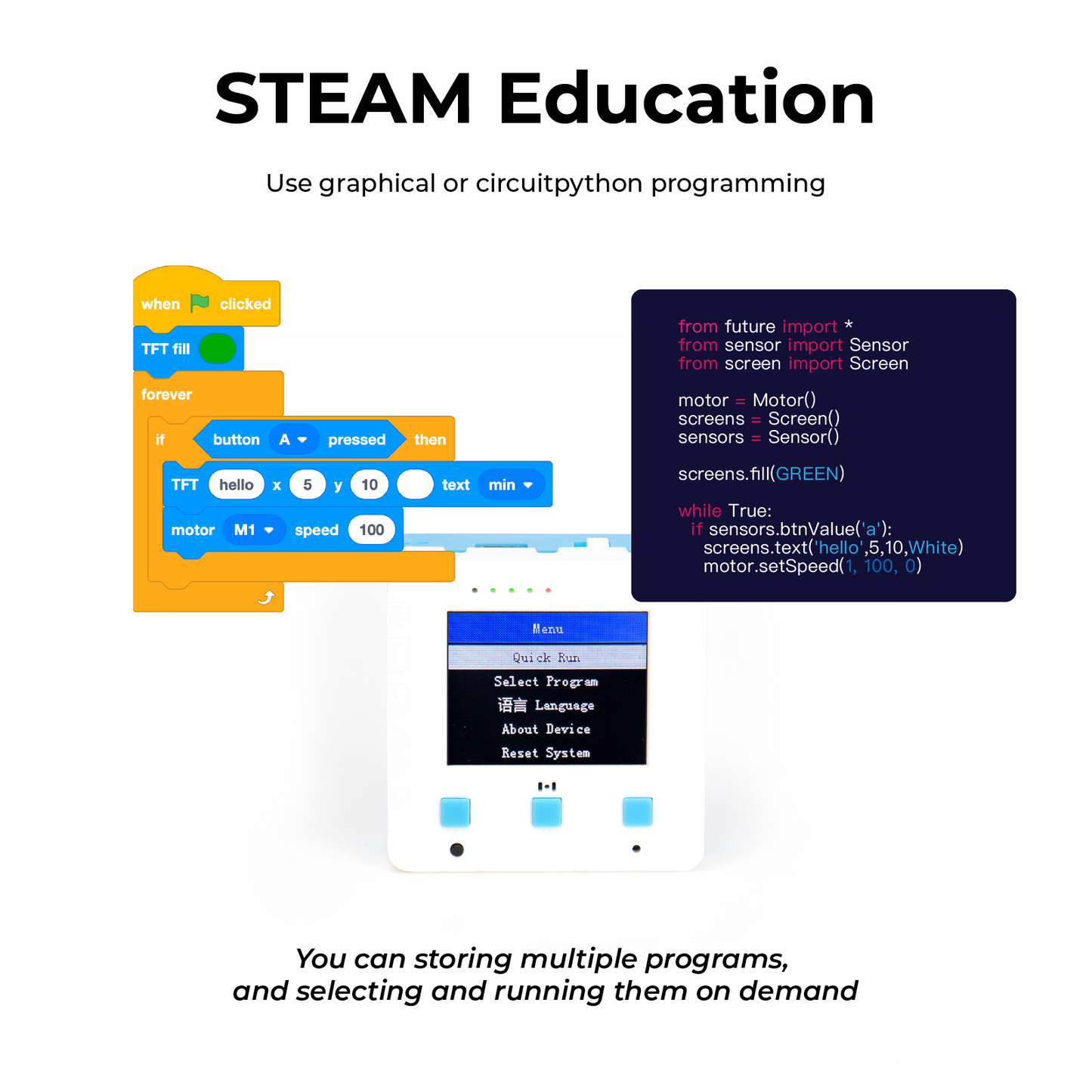

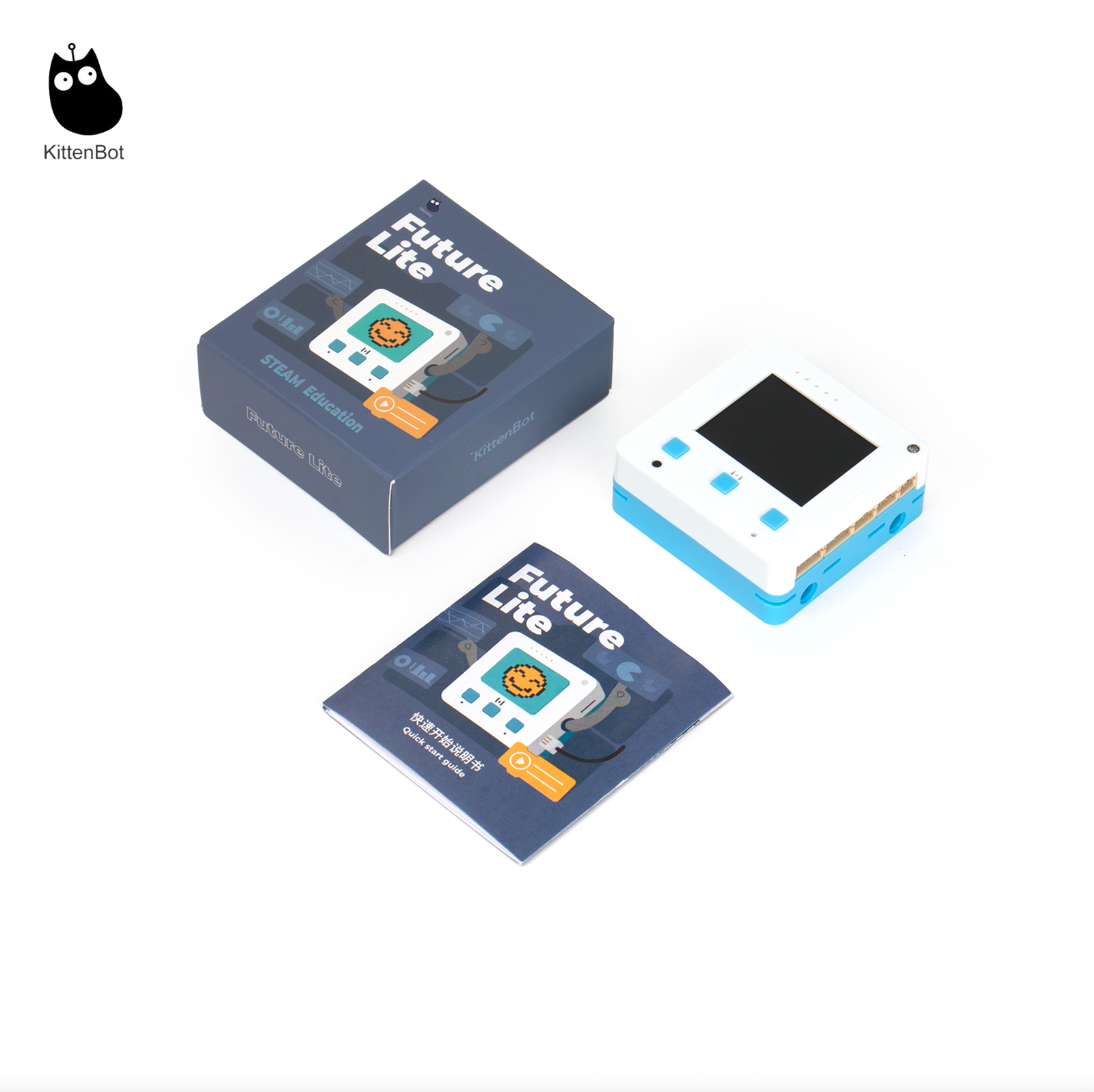

Futureboard Lite is an integrated programming controller designed and manufactured by KittenBot. It is based on the ESP32-S3 chip and includes wireless communication functions. It can meet the teaching needs of graphical and Python(circuitPython) code programming, as well as the use of creative project production. Some commonly used sensors are integrated inside the board, and it also comes with a battery, which is also very suitable for beginners to get started.

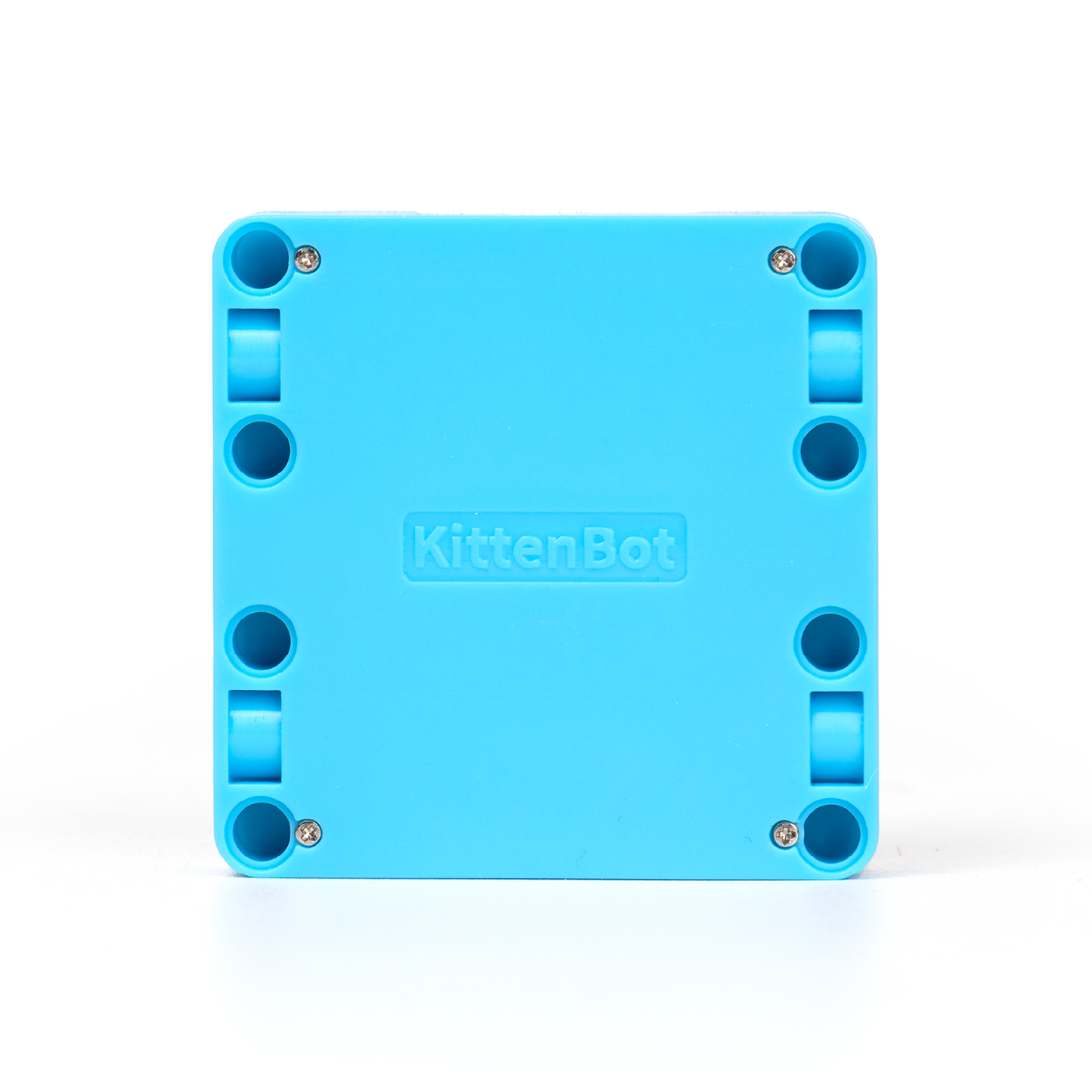

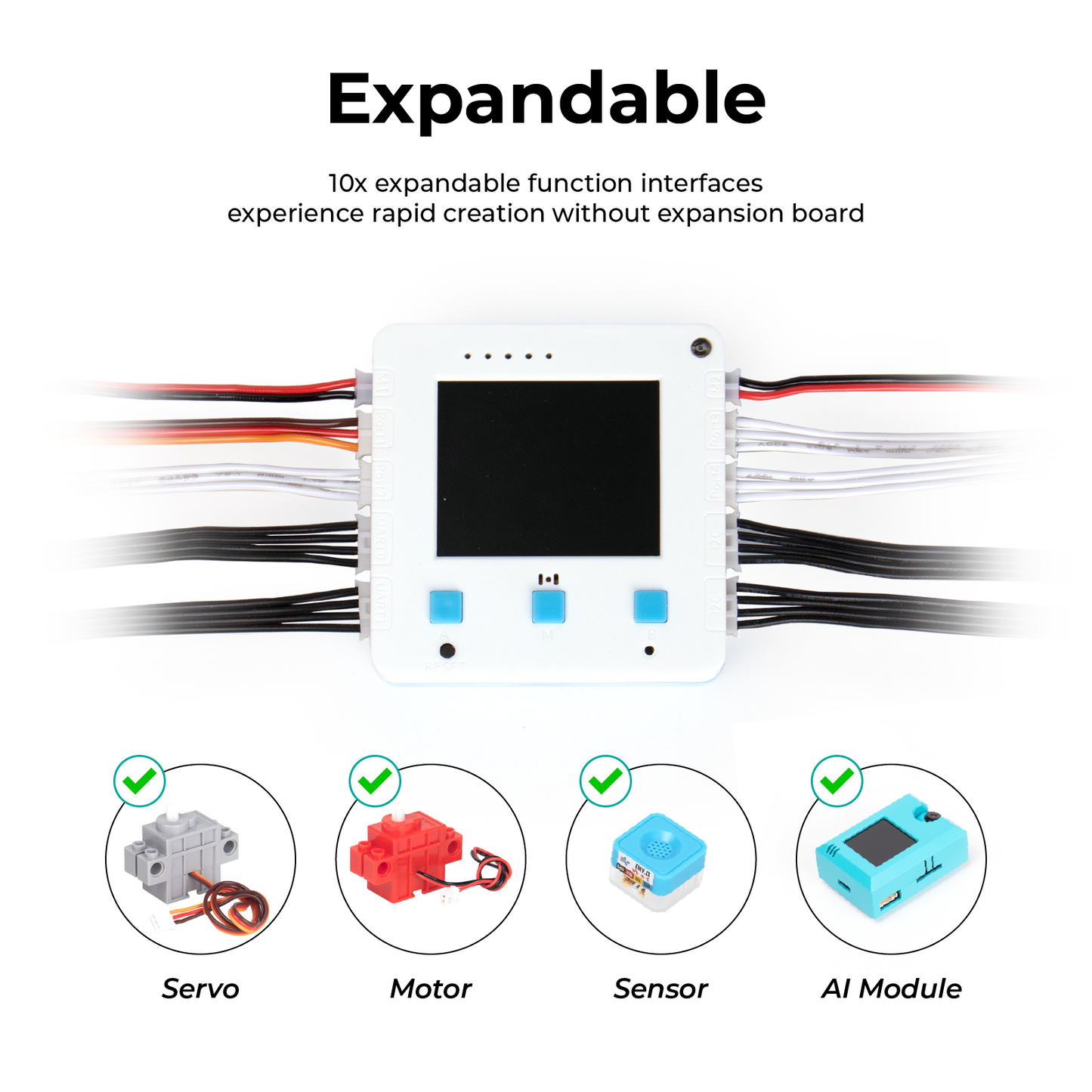

Compared with the futureboard, the Lite one is easier to use in terms of structure and wiring. It no longer needs to be connected to the expansion board, and can be quickly connected to various electronic module sensors. It is a standard Lego size and compatible with Lego holes, which has a more natural advantage in project structure creation.

Dimensions	56 x 56 x 21.5mm
Weight	53g

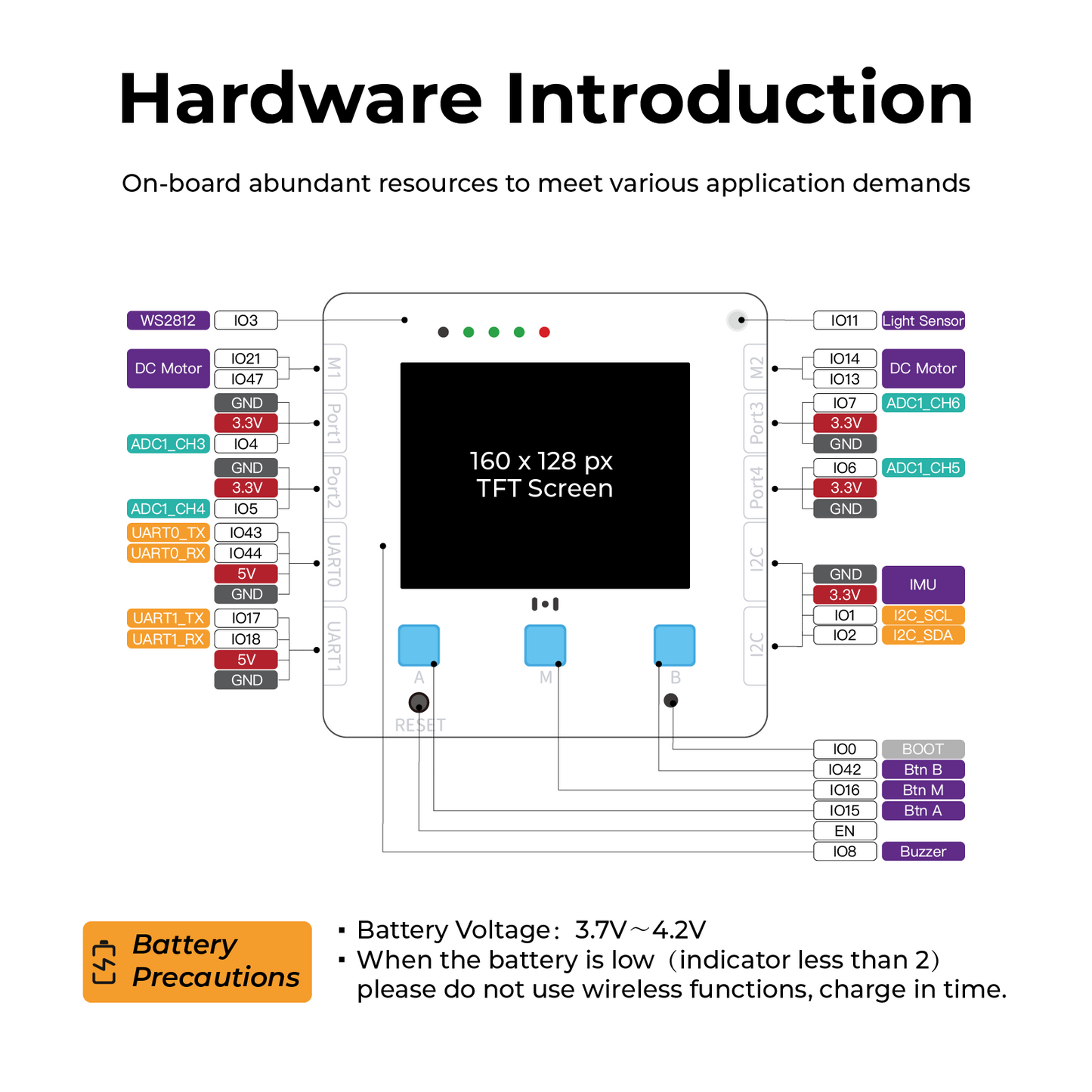

MCU	ESP32-S3, Xtensa32-bit LX7 dual-core processor, main frequency up to 240 MHz
Operating Voltage	3.3V
Supply Voltage	USB(5V), Lithium battery pack(3.7~4.2V)
Output Current	500mA (Max)
TFT Screen	1.77-inch, 160*128
Programming Platform	Kittenblock(recommended) / circuitPython
