MeowBit Guide - 01 System Operations

This page will explain how to use the system operations on the Meowbit, including entering uploading mode, opening options or firmware updates.



Entering Upload Mode

Only in Upload Mode can the games be uploaded to MeowBit.

Method 1

Connect the MeowBit to a computer using an USB Cable.

Hold the A button on the MeowBit and switch the power on.

The Meowbit is in Upload Mode when this screen is shown.

../_images/f4_1.gif



Method 2

Connect the MeowBit to a computer using an USB Cable.

Switch the power on.

Hold the A button and press the reset button.

The Meowbit is in Upload Mode when this screen is shown.

../_images/f4_2.gif

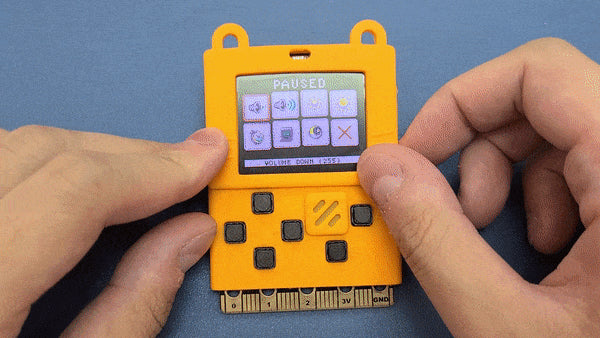

Opening Options Menu

We can open up the settings menu to change settings such as screen brightness or volume.



Method 1

Press the Options button.

Use the D-Pad to select different settings and use button A to confirm.

../_images/menu1.gif



Updating the Firmware

Firmware v2.8.0 Download

Enter Upload Mode first.

../_images/fw1.jpeg

Put the files onto the device called Arcade-F4. After updating, press the reset button to finish the update.

../_images/fw2.jpeg



If you have any question, please feel free to contact us at Discord, we will always be there to help.



KittenBot Team
