Meowbit Guide 09 - Robotbit

Meowbit can be used in conjunction with a Robotbit to achieve even more possibilities.

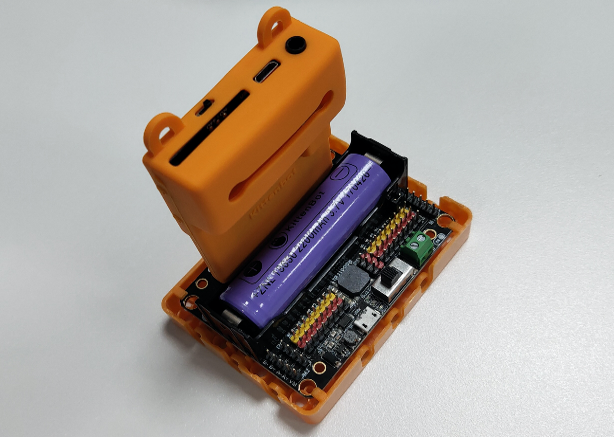

Robotbit Precautions:

1: The battery must be installed in the right way.

2: The screen of the Meowbit must be facing outwards.

../_images/robotbit24.png



MakeCode Arcade Coding Tutorial

../_images/acbanner1.png



Using Robotbit

Load Robotbit Extension
Robotbit Extension: https://github.com/KittenBot/meow-robotbit
Loading Extensions

Loading the extension for Robotbit would automatically load the extension for IO pins.

../_images/sd5_1.png

../_images/robotbit1_1.png

Blocks for controlling Robotbit

../_images/robotbit2_1.png



Using Meowbit and Robotbit

1. Controlling Motors

Connect DC motors to the motor ports M1A and B of the Robotbit.

../_images/motor_wire.png

../_images/robotbit5_1.png

Sample Code Link



2. Controlling Servos

Connect a servo to the servo port S1 of the Robotbit.

../_images/servo_wire.png

../_images/robotbit6_1.png

Sample Code Link



3. Controlling Stepper Motors

Connect stepper motors to the motor ports M1 and M2 of the Robotbit, with the red wire connecting to VM.

../_images/stepper_wire.png

../_images/robotbit7_1.png

Sample Code Link



Kittenblock Coding Tutorial

../_images/kbbanner.png

Blocks for controlling Robotbit

../_images/kb15_1.png

1. Controlling Motors

Connect DC motors to the motor ports M1A and B of the Robotbit.

../_images/motor_wire.png

../_images/robotbit16_1.png



2. Controlling Servos

Connect a servo to the servo port S1 of the Robotbit.

../_images/servo_wire.png

../_images/robotbit17_1.png



3. Controlling Stepper Motors

Connect stepper motors to the motor ports M1 and M2 of the Robotbit, with the red wire connecting to VM.

../_images/stepper_wire.png

../_images/robotbit18_1.png



Troubleshooting

Q: How to solve the problem of “Robotbit is not defined” error on Meowbit after uploading the program from Kittenblock?

../_images/robotbit23.jpg



A: Robotbit could not be initialized because Meowbit is not connected to Robotbit, connect Meowbit to Robotbit and reset to run the program as normal.
