ESP32 IoT Future Board Kittenblock Programming Tutorial 05 - GPIO

There are four ways to control basic sensors. Here in this tutorial we use four modes of the pinouts to access most of the sensors with Kittenblock.

 Programming Blocks



Read the pin level value, 0 and 1 correspond to 0V and 3.3V respectively

Set the level value of the pin

Read 10-bit pin analog value (0-1023) / 12-bit (0~4096)

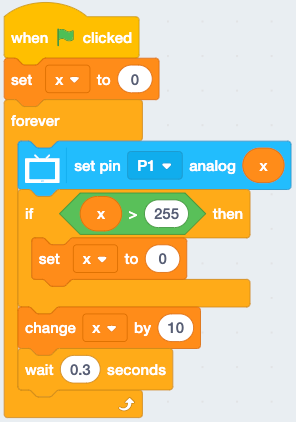

The analog value of this pin can be set to 0~1023 corresponding to the output voltage 0~3.3V






📋: Analog input

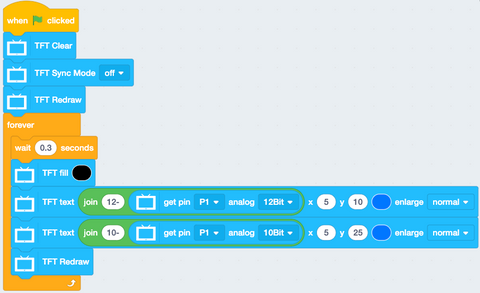

📋: Analog output (PWM)

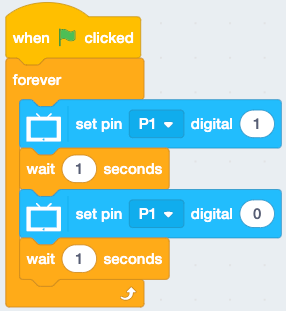

📋: Digit output

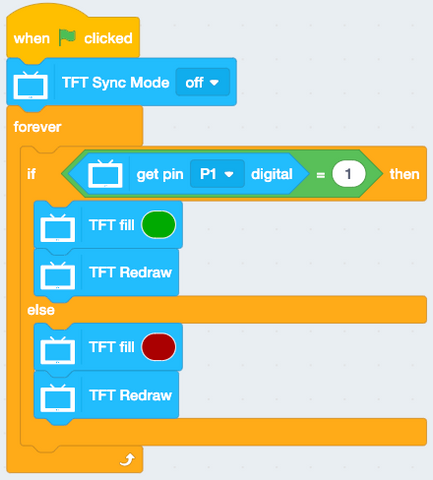

📋: Digit read
