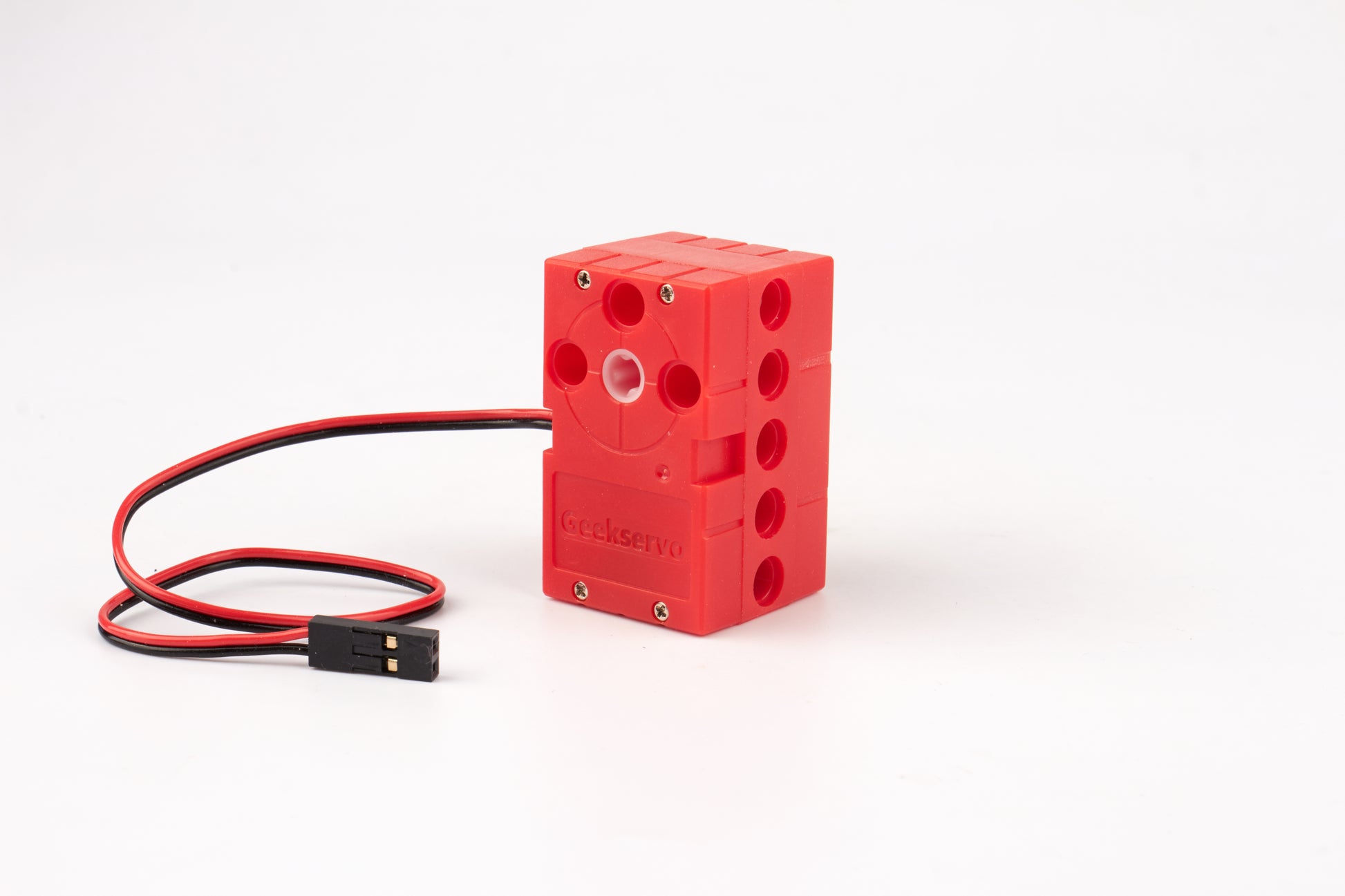

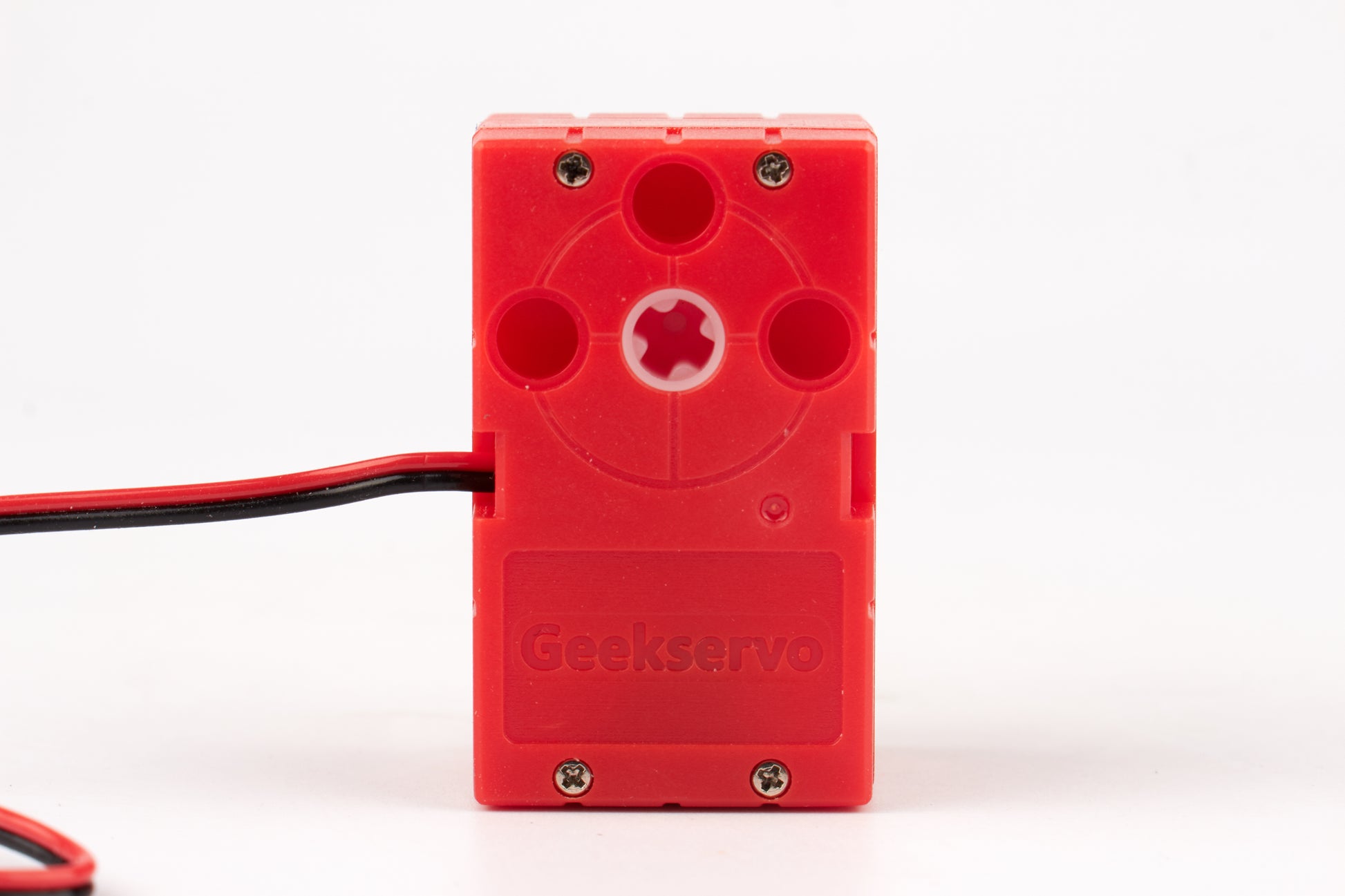

KittenBot Red GeekServo 2KG Motor for micro:bit/ Arduino projects
Shipping policy
This is a motor compatible with Lego technic parts, compared to 9g motors, it has a higher speed. The output axle is a Lego technic axle connector. It is suitable for applications where a high-power driver is required.
Specifications
-
Operating Voltage: 3.3V~6V
-
Rated Voltage: 4.8V
-
Rated Current: 200mA
-
Blocked Motor Current: 700mA
-
Slipping Current: 450mA
-
Maximum Torque: 1.6kg±0.2kg/cm(4.8V)
-
Maximum Speed: 45rpm(3V)
-
Weight: 20g
Special Features
Inherits the special features of the 9g motor while improving torque and speed at the same time.
-
Uses an axle connector for output
-
Allows connecting axles of different lengths to better suit your needs
-
-
Dual Outputs
-
Output axles are found on both sides
-
-
Larger rotational range
-
Has a full 360° range
-
-
Higher Torque
-
About 3 times the torque of a 9g motor
-
Dimensions
In Lego units:
-
Length: 5
-
Width: 3
-
Height: 3
-
Output Axle: Technic Axle
In mm units:
-
Length: 40mm
-
Width: 24mm
-
Height: 24mm
-
Output Axle: Technic Axle
Connection
Robotbit
Connect the motor to the motor ports on the Robotbit.
Reversing the connection would not damage the motor, but the rotational direction will be reversed.
